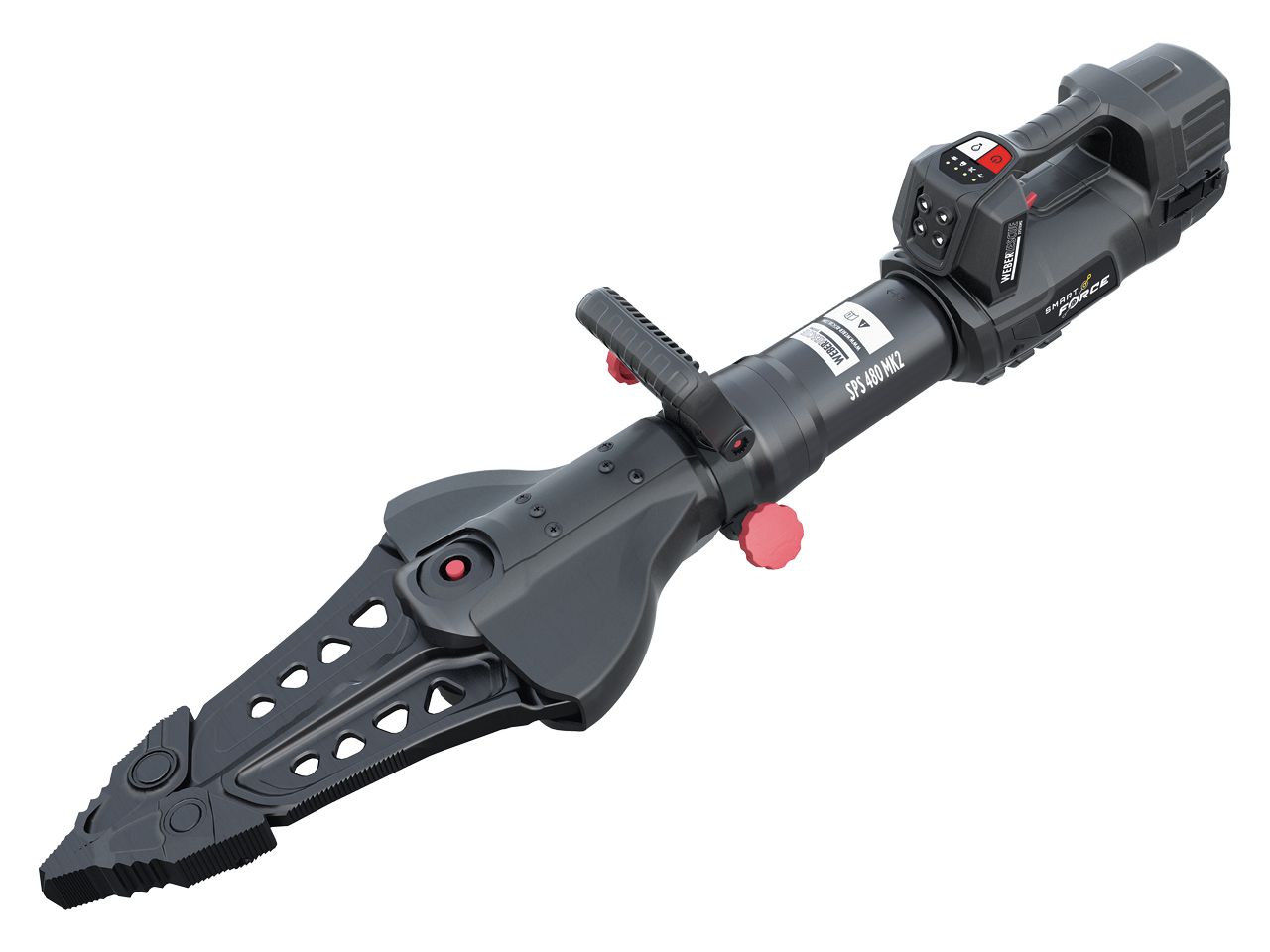

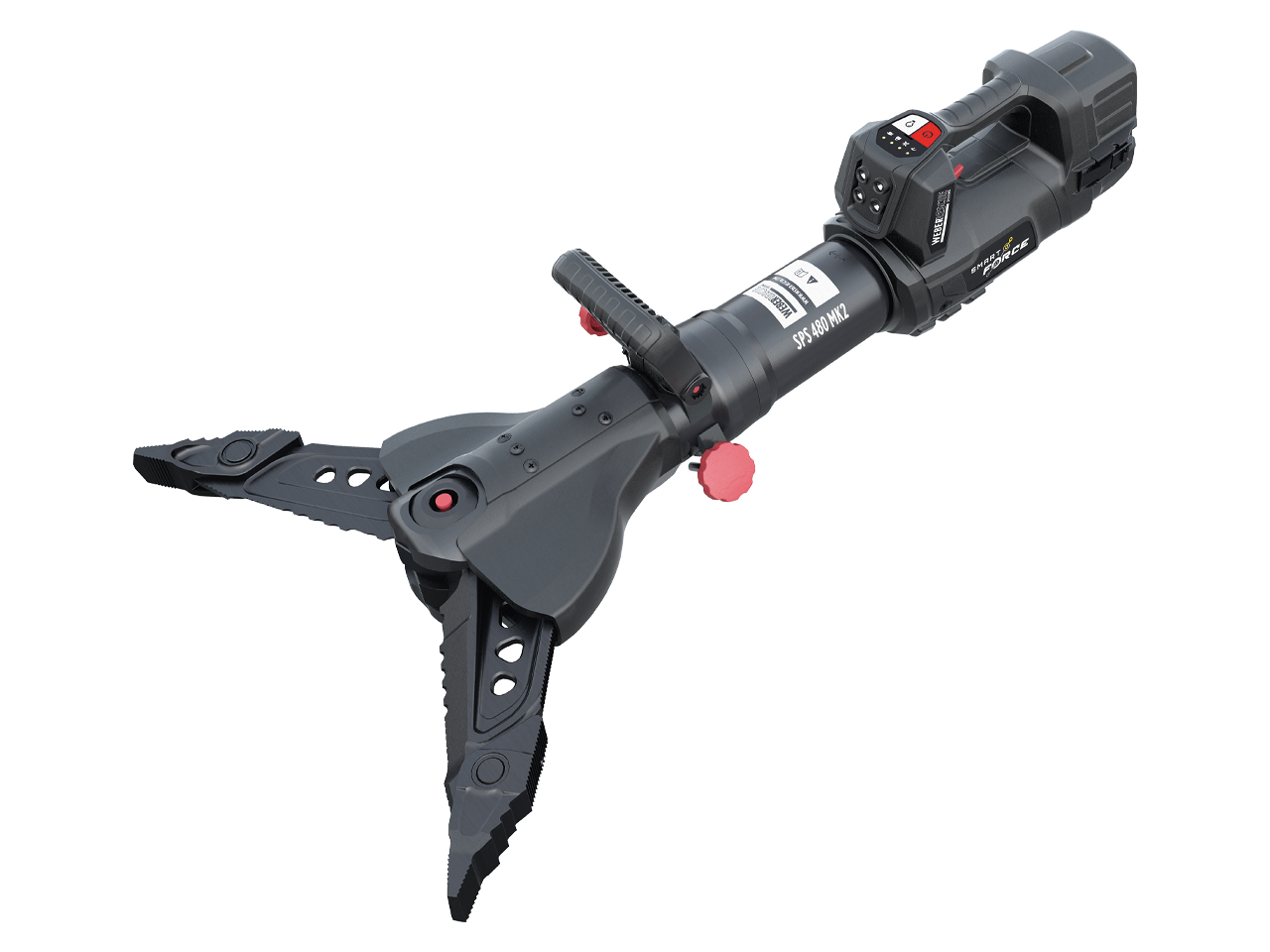

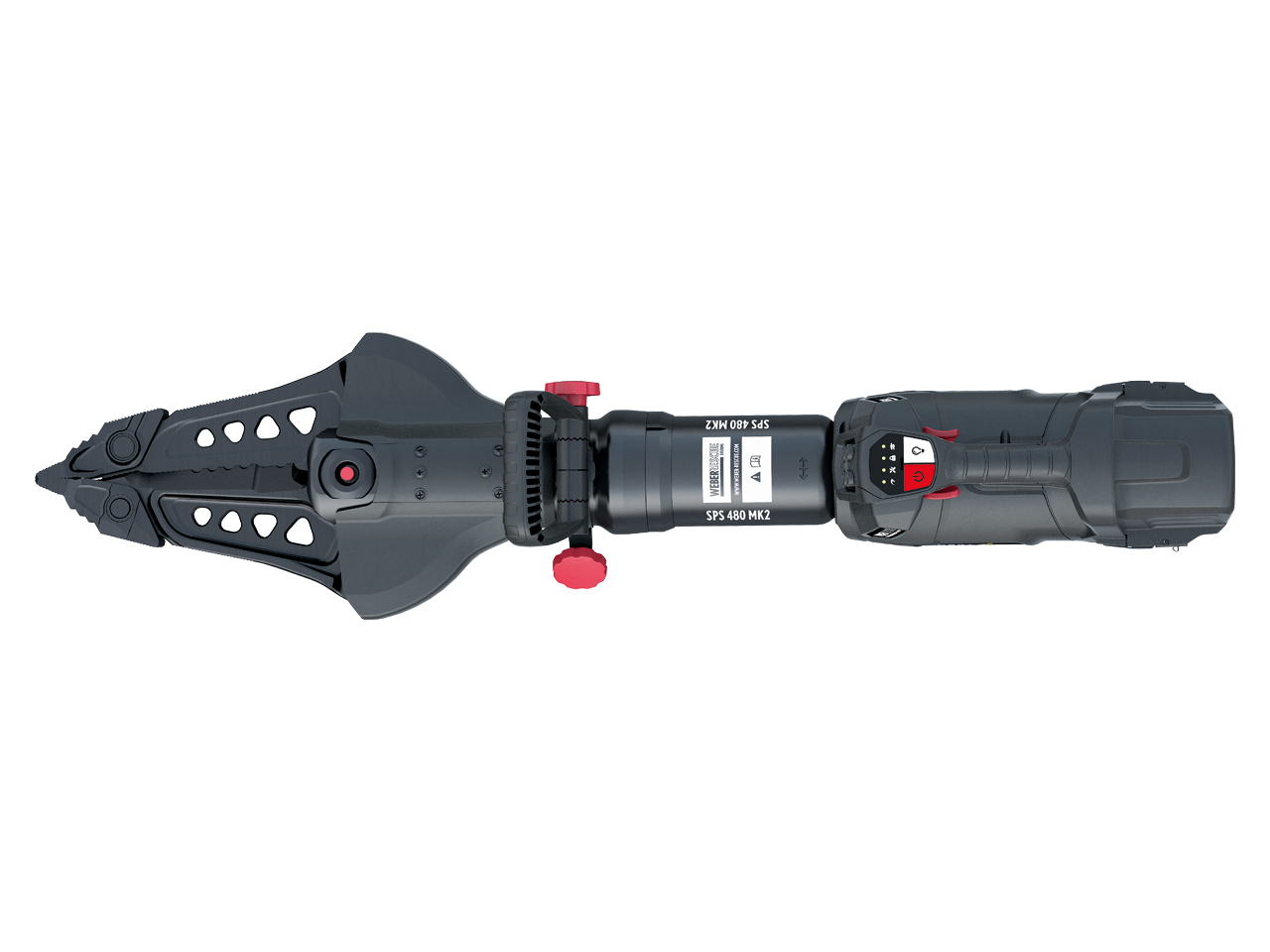

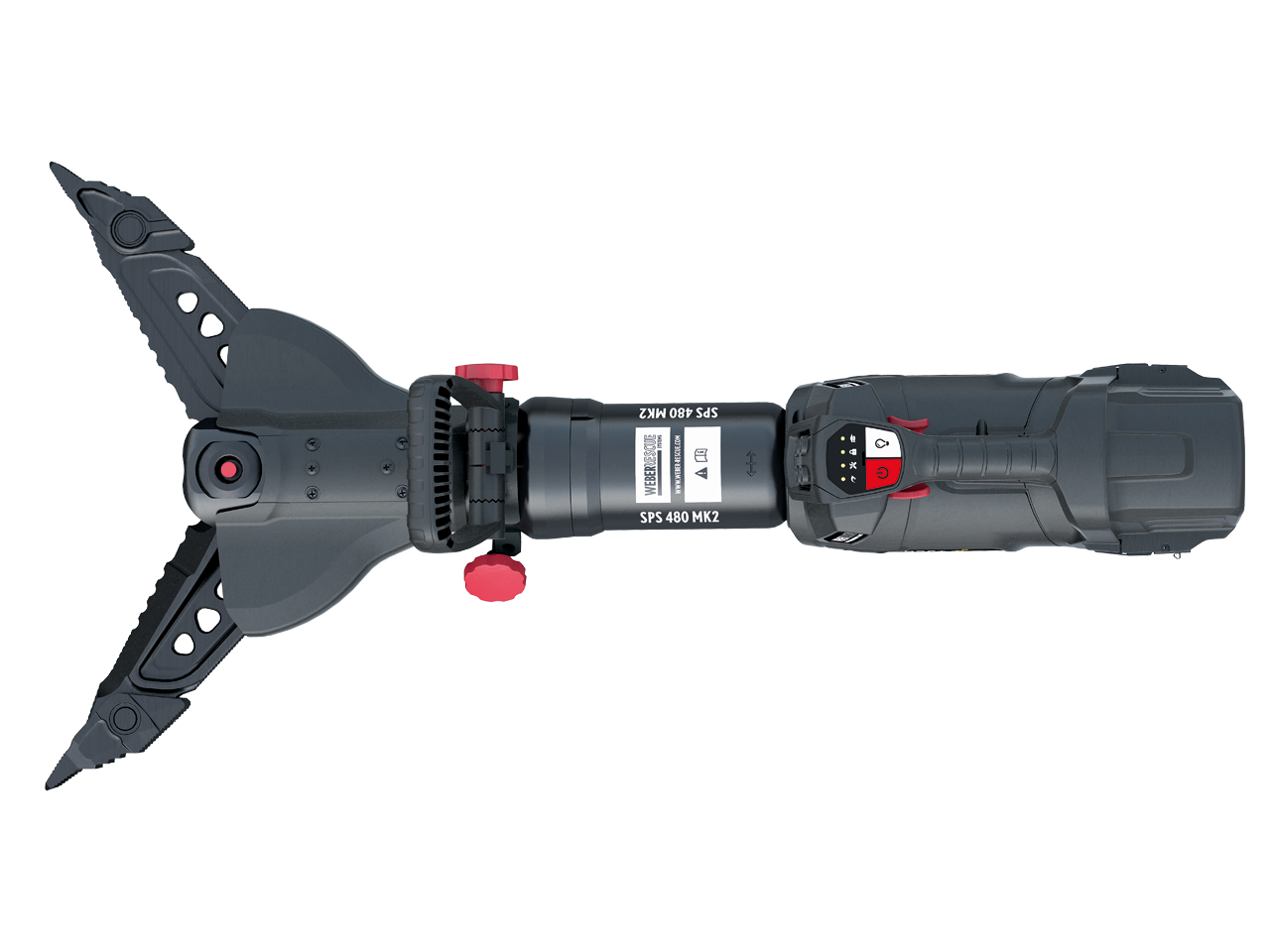

WEBER Combi Tool SPS 480 MK2 Smart Force

COMBI TOOL SPS 480 MK2 SMART-FORCE

Extremely powerful combi tool with maximum cutting and spreading force and revolutionary smart features

Numerous innovative and smart additional functions

Very large opening width of 480 mm

Re-shapeable, trussed grid structure blades with a notch for cutting round bars

Becomes a fully-fledged cutting tool through removable tips

Can be combined with chain set and door opener tips

Rotating and folding handle for optimal handling

18V MILWAUKEE M18TM HIGH-OUT PUT battery technology (battery not included)

Technical data

Spreading width 480 mm

Spreading force (in the working area) 45 – 1600 kN

Max. squeezing force 107 kN

Pulling width (with adapter) 525 mm

Max. pulling force 78 kN

EN class CK45/480K-25,6

EN cutting class (EN 13204) 1K-2K-3K-4K-5K

NFPA class A8-B9-C9-D9-E9-F7

Weight (ready for use) 25,6 kg

Part no. 1101554

The weight shown here is the operating weight of the device including the 8 Ah MILWAUKEE M18™ High-Output™ battery and the closed underwater cover.

Images are non-binding. We reserve the right to technical modifications.

All SMART-FORCE battery-powered rescue tools have two battery covers (IP-54 and IP-68 cover) included in the delivery.

IP 54 Battery cover for 5.5 Ah & 8.0 Ah

To protect the battery from mechanical damage.

When using the IP 54 battery cover, the tool achieves protection class IP54 (protection against moisture and splash water). Furthermore, a quick battery change is possible in regular operation scenarios.

Part no. 1099352

IP 68 Battery cover for 5.5 Ah & 8.0 Ah

Conversion to underwater use with a few simple steps (suitable for fresh, salt or dirty water).

When using the IP 68 battery cover, the tool achieves protection class IP68. This means that the tool is approved for underwater use up to a depth of 3 m for a duration of 60 minutes (details on underwater use, maintenance, service and care can be found in the operating instructions).

Part no. 1099894

When using 12 Ah 18V MILWAUKEE M18TM HIGH-OUTPUTTM batteries, the larger IP 54 battery cover (part no. 1101405) can also be purchased. This is then suitable for 5.5 Ah & 8.0 Ah & 12.0 Ah batteries.

Weber Main Rescue Catalogue -DOWNLOAD

WEBER Combi Tool SPS 480 MK2 Smart Force

SKU

1101554
