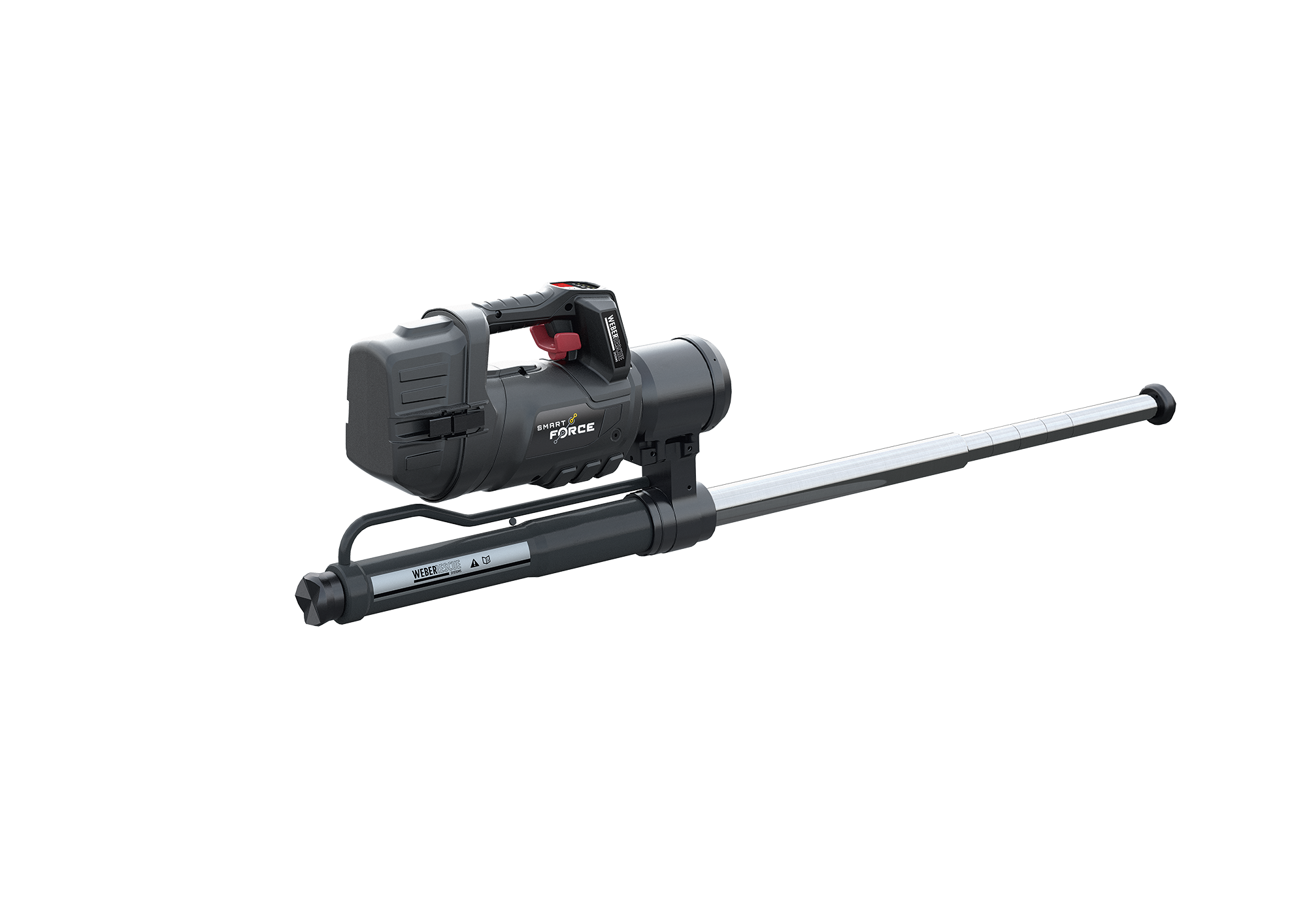

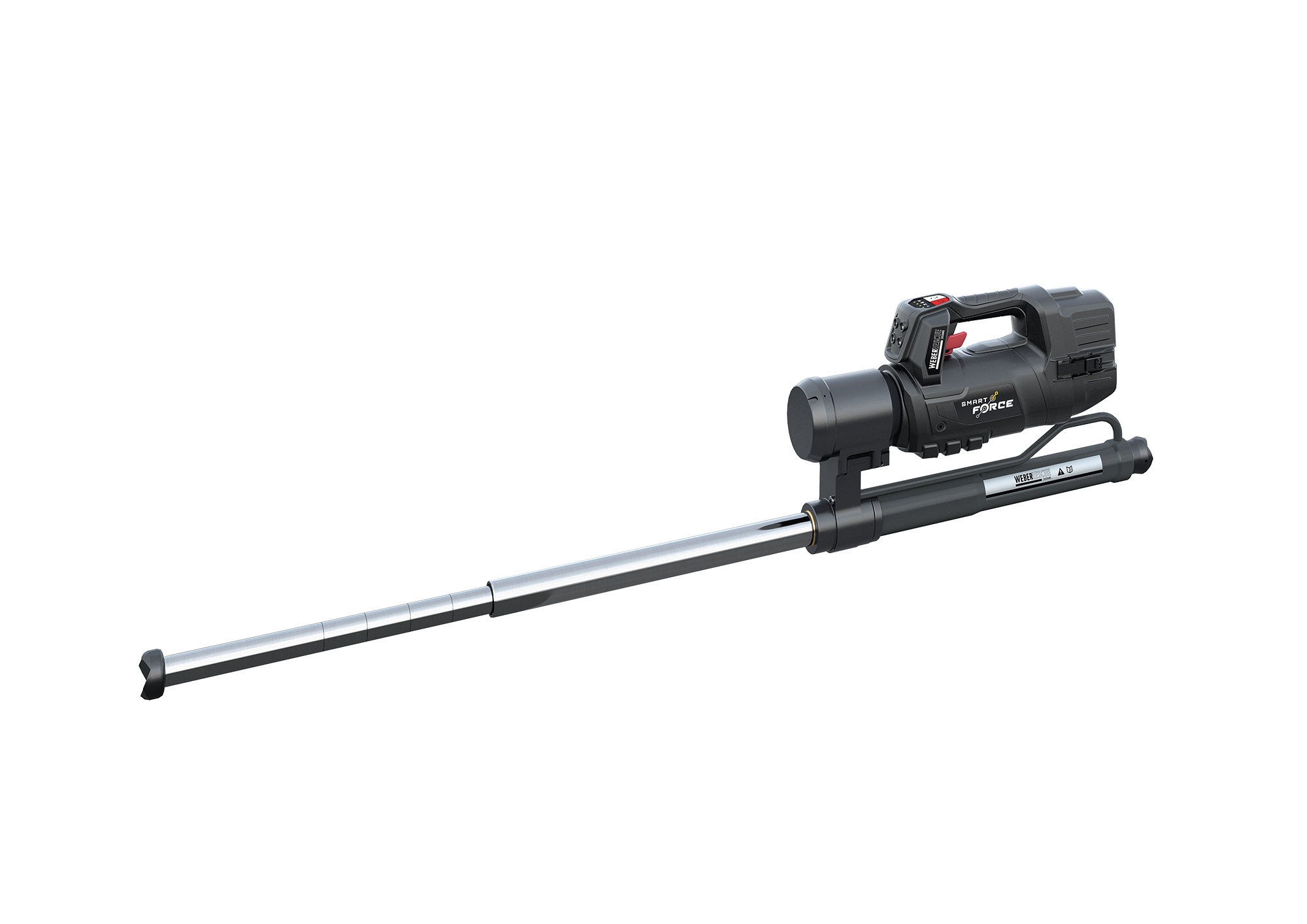

Weber RAM Rescue Cylinder RZT 2-1360 Smart Force
RESCUE CYLINDER RZT 2-1360 SMART-FORCE
Innovative rescue ram for more mobility and flexibility in use with revolutionary smart features
Numerous innovative and smart additional functions
Pushing up to the final length of 1.360 mm without settling
Large extended length due to multi-stage design
Integrated remaining length indication on the piston rod (DISTANCE)
18V MILWAUKEE M18TM HIGH-OUTPUTTM battery technology (battery not included)
Technical data
Pushing force (1./2. stage) 108 kN/62 kN
Closed length 587 mm
Piston stroke (1./2. stage) 428 mm/372 mm
Extended length 1.387 mm
Weight (ready for use) 21,5 kg
Part no. 1100145
Part no. 1100145
The weight shown here is the operating weight of the device including the 8 Ah MILWAUKEE M18™ High-Output™ battery and the closed underwater cover.
Images are non-binding. We reserve the right to technical modifications.
All SMART-FORCE battery-powered rescue tools have two battery covers (IP-54 and IP-68 cover) included in the delivery.
IP 54 Battery cover for 5.5 Ah & 8.0 Ah
To protect the battery from mechanical damage.
When using the IP 54 battery cover, the tool achieves protection class IP54 (protection against moisture and splash water). Furthermore, a quick battery change is possible in regular operation scenarios.
Part no. 1099352
IP 68 Battery cover for 5.5 Ah & 8.0 Ah
Conversion to underwater use with a few simple steps (suitable for fresh, salt or dirty water).
When using the IP 68 battery cover, the tool achieves protection class IP68. This means that the tool is approved for underwater use up to a depth of 3 m for a duration of 60 minutes (details on underwater use, maintenance, service and care can be found in the operating instructions).
Part no. 1099894
When using 12 Ah 18V MILWAUKEE M18TM HIGH-OUTPUTTM batteries, the larger IP 54 battery cover (part no. 1101405) can also be purchased. This is then suitable for 5.5 Ah & 8.0 Ah & 12.0 Ah batteries.
Weber RAM Rescue Cylinder RZT 2-1360 Smart Force
SKU
1100145
Category
Technical data
Pushing force (1./2. stage) 108 kN/62 kN
Closed length 587 mm
Piston stroke (1./2. stage) 428 mm/372 mm
Extended length 1.387 mm
Weight (ready for use) 21,5 kg
Part no. 1100145
The weight shown here is the operating weight of the device including the 8 Ah MILWAUKEE M18™ High-Output™ battery and the closed underwater cover.
Images are non-binding. We reserve the right to technical modifications.
