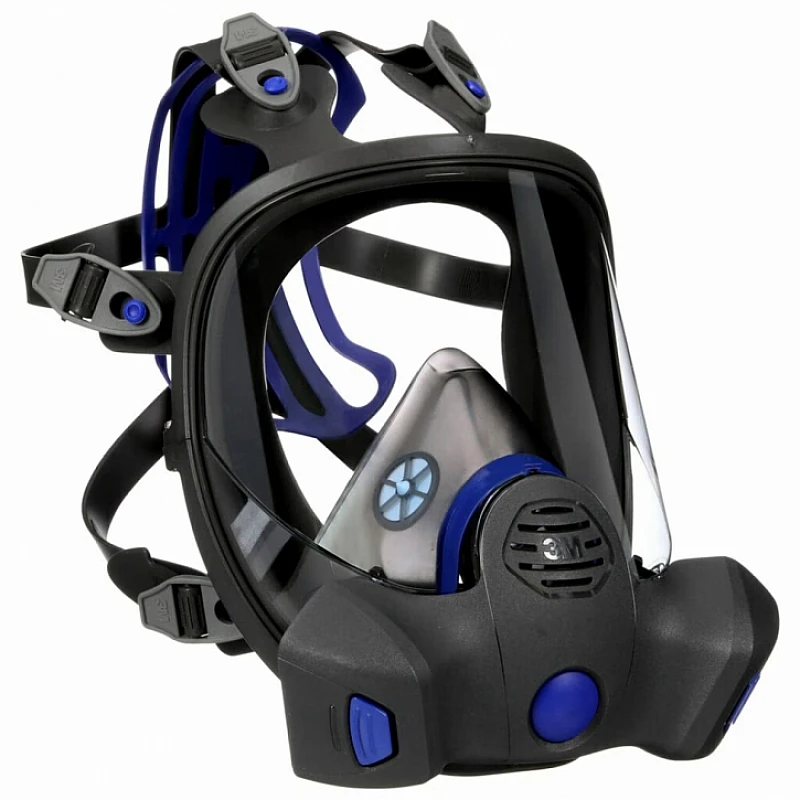

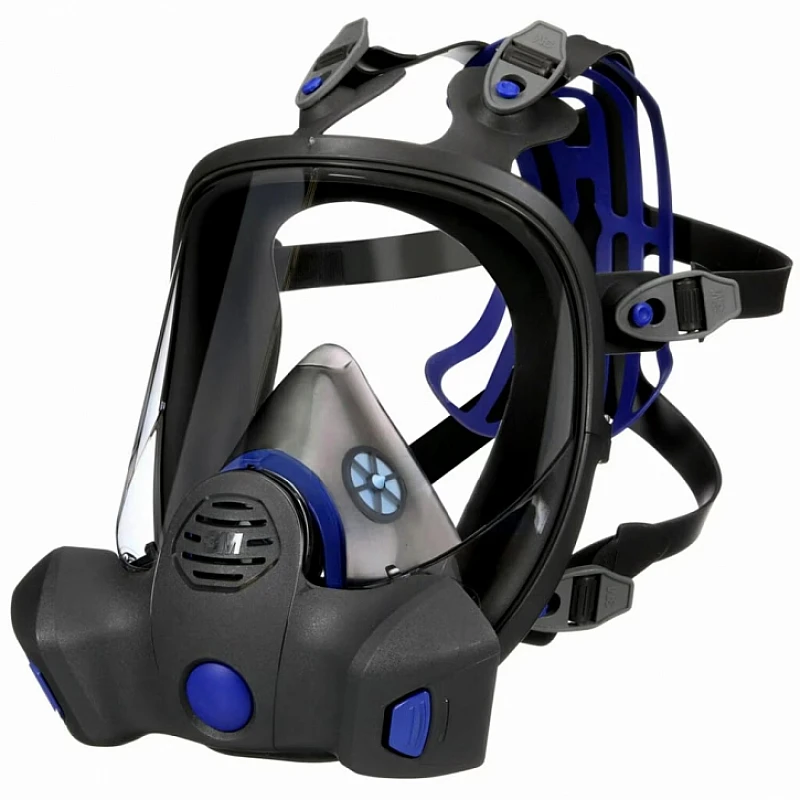

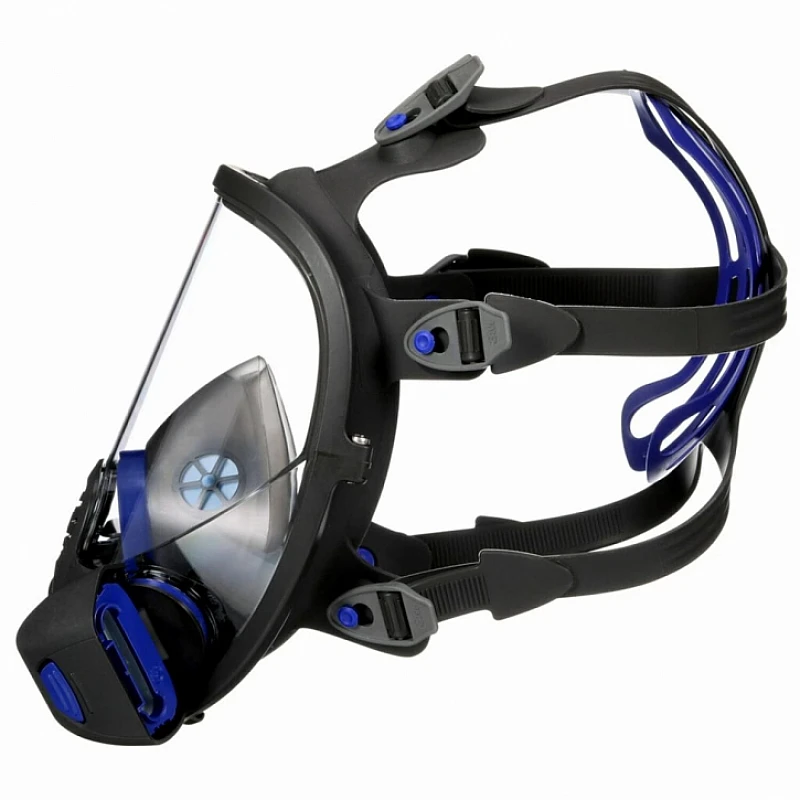

Designed with smart and intuitive features, the 3M Full Facepiece Reusable Respirator FF-800 Series helps protect workers from
particulates and a wide variety of gases and vapors when used with approved 3M Secure Click filters and cartridges.

All facepieces in the FF-800 range have the 3M™ Secure Click™ filter connection mechanism allowing connection to a
broad range of 3M™ Secure Click™ filters to help protect against gases, vapours and/or particulates depending on your
individual needs.

• Durable, Long-lasting Head Harness
  Features a six-strap configuration for a secure fit
• Speaking Diaphragm
  Designed to help provide
  easy communication.
• Large Lens
  Helps provide wide view for
  excellent peripheral vision.
  Scotchgard™ protector on
  lens for improved paint and
  stain resistance
• Comfort Cradle
  Positions respirator
  more comfortably on
  head, reducing pressure
  points and hair pulling.
• Unique Filter &
  Cartridge Connection
  Snaps into place for
  intuitive assembly.
• Push Button Seal Check
  Easy way to conduct
  (positive pressure) seal
  check prior to each use.
• Exhalation Valve Cover
  Helps direct exhaled breath
  and moisture downward.

• Sizes: Small, Medium, Large
• Material: Advanced silicone
• Connection Type: Secure Click™ bayonet-style
• Cartridge Compatibility:
  • 3M™ Secure Click™ Cartridges (D8000 Series)
  • Filters (D3000 and D7000 Series)

Complies with AS/NZS 1716
Respiratory Protective Devices

70071516986 – FF-400-17 Semi-permanent lens protector. Adhesive around full edge

XA006514674 102 3M™ Universal spectacle kit

AT010587411 504 Respirator Cleaning Wipe, Alcohol-Free 100/Box

70071516846 FF-400-01 3M™ Buckle

70071516853 FF-400-02 3M™ Button

70071516895 FF-400-06 3M™ Comfort Cradle Head Harness Attachment

70071516903 FF-400-07 3M™ Exhalation Valve Assembly

70071516945 FF-400-11 3M™ Nose Cup Assembly

70071516960 FF-400-13 3M™ Speaking Diaphragm Assembly

70071765591 FF-800-01 3M™ Secure Click™ Lens Replacement

70071765609 FF-800-02 3M™ Secure Click™ Lens Frame Assembly

70071765617 FF-800-03 3M™ Secure Click™ Inhalation Valve Assembly

70071765716 FF-800-04 3M™ Secure Click™ Exhalation Valve Cover Assembly

70071766730 FF-800-05 3M™ Secure Click™ Head Harness

AT010561507 7582 3M™ Inhalation Valve 7582

70071668183 6583 3M™ Exhalation Valve

70071516978 FF-400-15 3M™ Lens Cover

AT019223489 6886 3M™ Tinted Lens Cover

70071765724 FF-800-06 3M™ Secure Click™ Quantitative Fit Test Adapter Kit

XA006514674 102 3M™ Universal Spectacle Ki

UU009286772 – D8051 – A1 – Organic vapours (b.pt. > 65°C)

UU009288695 – D8055 – A2 – Organic vapours (b.pt. > 65°C)

UU009288406 – D8059 – ABEK1 – Combination organic vapours (b.pt.>65ºC), inorganic & acid gases & Ammonia

UU009289347 – D8094 – ABEK1P3 – Combination organic vapours (b.pt. >65ºC), inorganic & acid gases, Ammonia, Particulates and Formaldehyde

UU009289339 – D8095 – A2P3 – Organic vapours (b.pt. >65ºC), & Particulates

70071731312 – D7925* – P2 – Particulates (intended for use against
mechanically and thermally generated particulates)

70071731320 – D7935* – p3** – Particulates (intended for use against mechanically and thermally generated particulates including highly toxic materials)

Required to attach D7925 or D7935 onto D8051, D8055 or D8059 – UU10049979 – D701

70071731221 – D3125 – P2 -Particulates (intended for use against mechanically and thermally generated particulates)

70071731247 – D3135 – P2/P3** – Particulates (intended for use against mechanically and thermally generated particulates including highly toxic materials)

70071731262 – D3128 – P2/P3** – Particulates (intended for use against mechanically and thermally generated particulates including highly toxic materials), Ozone, and nuisance levels of Organic Vapours & Acid Gases***

70071731361 – D3076HF – P2 – Secure Click Particulate Filter P2HF with nuisance level. Acid Gas and Hydrogen. Fluoride up to 10x the WES

UU010285664 – D9035 – P2/P3** – Particulates (intended for use against mechanically and thermally generated particulates including highly toxic materials)

UU010291761 – D9038 – P2/P3** – Particulates (intended for use against mechanically and thermally generated particulates including highly toxic materials), Hydrogen Fluoride up to 30 ppm, and nuisance levels of Organic Vapours & Acid Gases below the OEL***

* D7925 and D7935 require D701 to attach to D8051, D8055 or D8059.

** Provides P3 protection only with full facepiece respirator. Provides P2 protection with half facepiece respirator.

*** Nuisance levels refers to concentrations not exceeding applicable government occupational exposure limits.

Secure Click Filters are also compatible with the HF-800SD Half Facepiece reusable respirator
