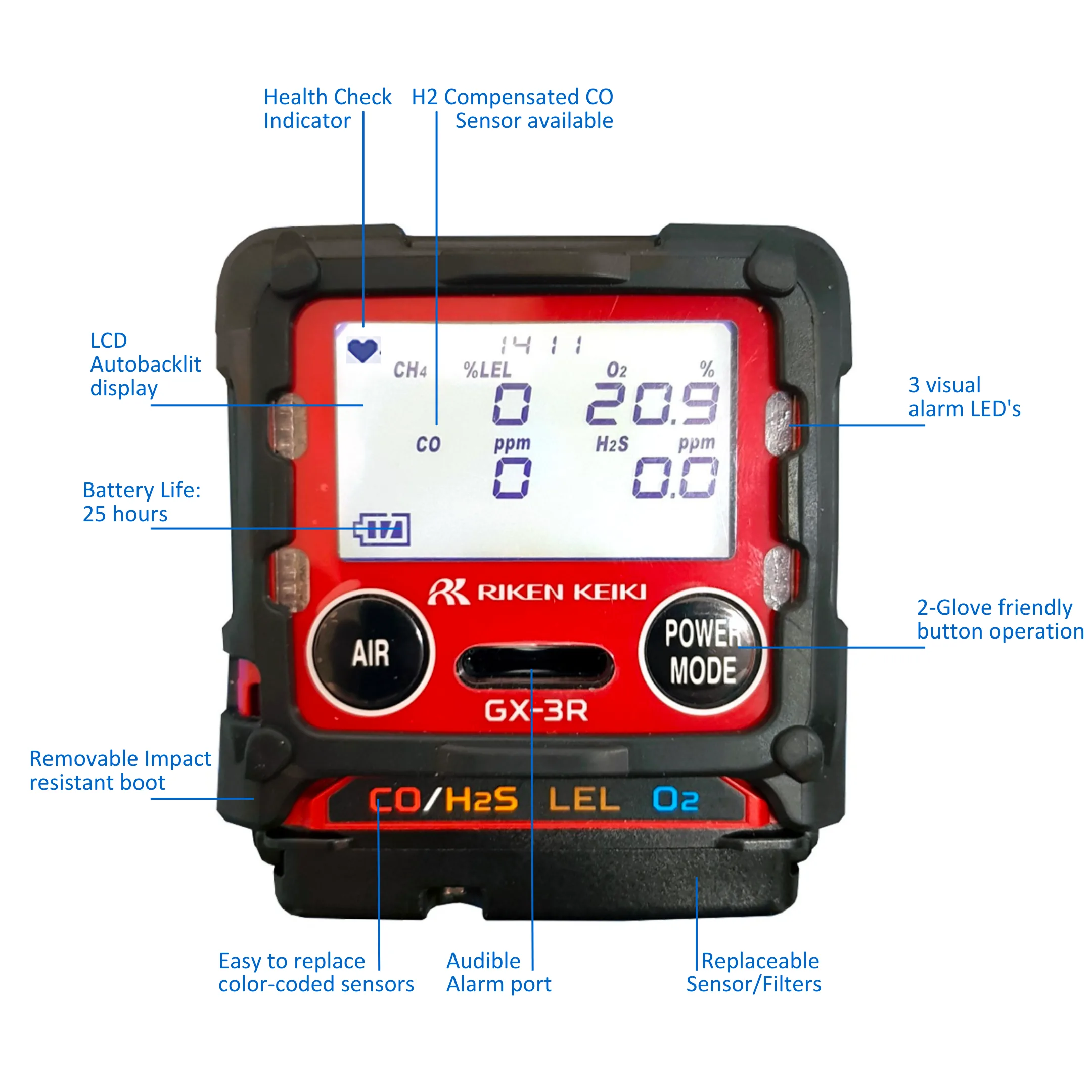

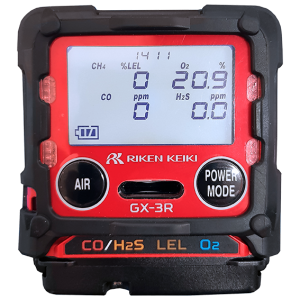

The GX-3R one to 4 gas personal monitor picks up where the GX-2009 left off. It’s the worlds smallest four gas personal monitor weighing only 100 grams and can comfortably be worn within workers breathing zone (55mm W x 64mm H x 26mm D). It simultaneously monitors and displays LEL combustibles, O2, CO (Hydrogen compensated CO also available), and H2S.

The Breathing zone

Optional Health and Safety defines the breathing zone as a 25cm radius around the worker’s nose and mouth and requires that worker exposure air samples collected in the breathing zone. Air sampling filters may be attached to the collar or lapel. Traditionally this means only a single gas monitor would be small enough for a worker to wear ‘In the breathing zone practically’. Now there is a four gas monitor smaller than many single gas monitors.

Sensors

This instrument represents the latest evolution of gas detection technology utilising a new generation of microsensors. The LEL sensor has a unique design, with two active filaments in one sensor to increase its resistance to silicone poisoning. If one filament gets poisoned, the second filament takes over. The new O2 sensor is electrochemical with a 5-year life span. H2S and CO are now available in a combo microsensor.

Non-compliance indicator

Safety supervisors will appreciate the non-compliance indicator. The instrument flashes it’s 3 LED lights every 30 seconds, if the device has been exposed to a gas or has not been bump tested or calibration is due. The 3 LED lights will continue to flash once every 30 seconds until the non-compliance condition has been resolved.
