The 3M™ FF-400 Series Full Face Masks are engineered to deliver maximum comfort and a wide field of view. Available in three sizes, all masks have the 3M bayonet connection system allowing connection to a broad range of twin lightweight filters to protect against gases, vapours and particulates depending on your individual needs.

Reusable, low maintenance respirator.

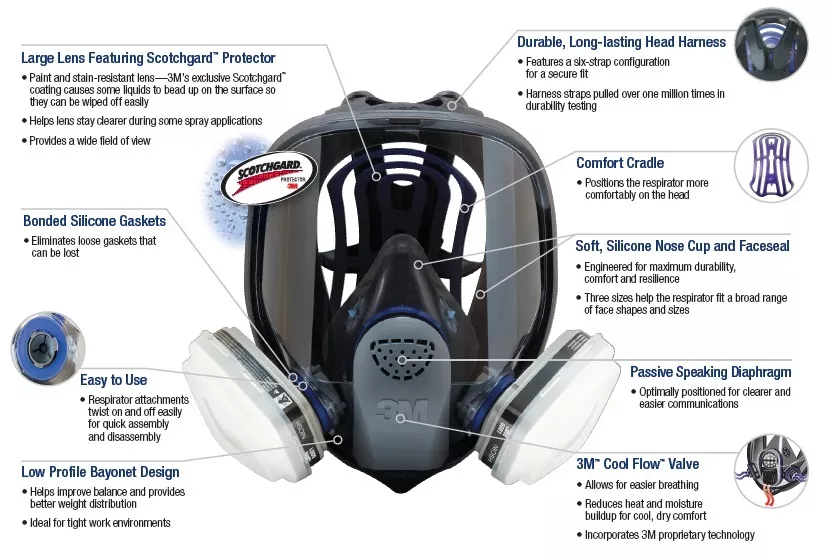

• Large polycarbonate lens with a wide field of vision
featuring 3M™ Scotchgard Protector coating to resist
dirt, paint and stains and provides for easier cleaning and
maintenance.
• Lightweight, well-balanced with soft silicone nose cup and
faceseal for maximum comfort and durability.

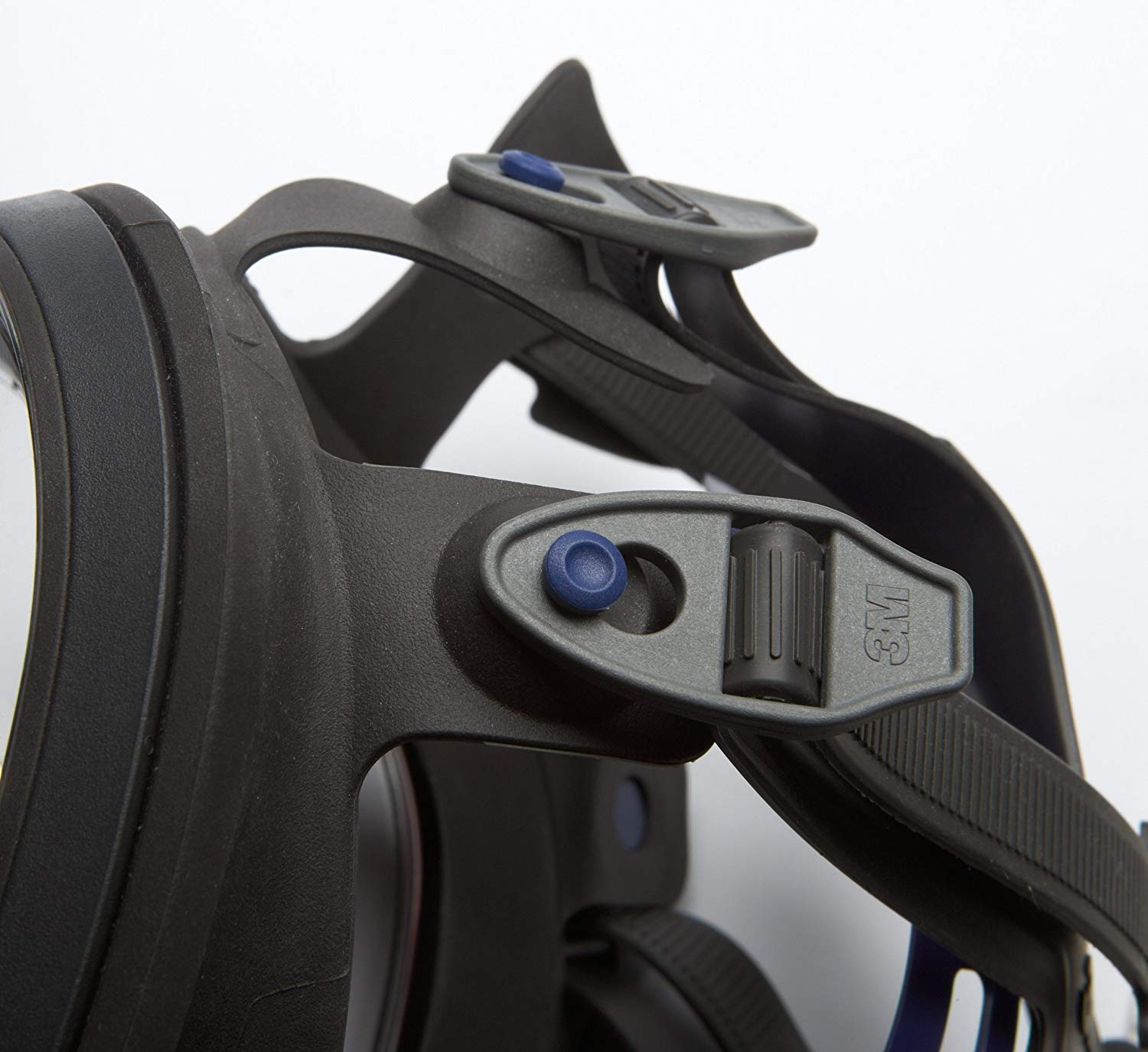

• Six point Head harness for a secure, durable fit
• Head harness with Comfort Cradle positions the mask
more comfortably on the head
• Passive speaking diaphragm for clearer communication
• 3M™ Cool Flow™ valve helps reduce heat and moisture
build up inside the facepiece
• Flexible – wide range of gas & vapour and / or particulate
filters available
• Twin filter design provides lower breathing resistance, a
more balanced fit, and improves field of vision.
• Safe, secure bayonet filter attachment system with
bonded silicone gaskets
• 3 sizes (small – FF-401, medium – FF-402, large – FF403)
• Spectacle kit and a range of spare parts available.
• Weight: Approx. 570 grams.

These products have been tested and are compliant with
the relevant Australian/New Zealand Standard AS/NZS
1716:2012 for use with:
• 6000 Series Gas and Vapour filters,
• 2000 and 5000 Series and 6035, 6038 Particulate filters

The FF-400 Series Respirators can be used with a variety of
different filter options:

Gas and Vapour Filters only: The filters generally protect
against either single or multiple contaminant type(s).

• The 3M™ Gas and Vapour Filters 6000 Series filters fit
directly onto the respirator.

Particulate filters only: These filters provide protection
against solid and non-volatile liquid particles.
• The 3M™ Particulate Disc Filters 2000 series fit directly
onto the respirator.
• The 6035 & 6038 are encapsulated P3 filters, which fit
directly onto the respirator.

Combination of Gas & Vapour and Particulate filters:
• The 3M™ Particle Filters 5000 Series can be used with
6000 Series Gas and Vapour filters using 501 retainers
excluding the 6035, 6038, 6096, 6098 and 6099.
• The 6096, 6098 and 6099 have Particulate filter media
integrated with the Gas and Vapour cartridge.
• The 6038 is an encapsulated particulate filter with a layer
of carbon for low capacity gas protection

3M Code Model # Description
70071510773 FF-401 Full Facepiece, Small
70071510807 FF-402 Full Facepiece, Medium
70071510831 FF-403 Full Facepiece, Large

70071516846 FF-400-01 Buckle
70071516853 FF-400-02 Button
70071516861 FF-400-03 Lens Replacement
70071516879 FF-400-04 Head Harness
70071516887 FF-400-05 Lens Frame Assembly
70071516895 FF-400-06 Comfort Cradle Head Harness Attach
70071516903 FF-400-07 Exhalation Valve Assembly
70071516911 FF-400-08 Bayonet Assembly
70071516929 FF-400-09 Exhalation Valve Cover
70071516960 FF-400-13 Speaking Diaphragm Assembly
70071516986 FF-400-17 Semi-Perm. Lens Protector
70071517018 FF-400-20 Spectacle Kit
