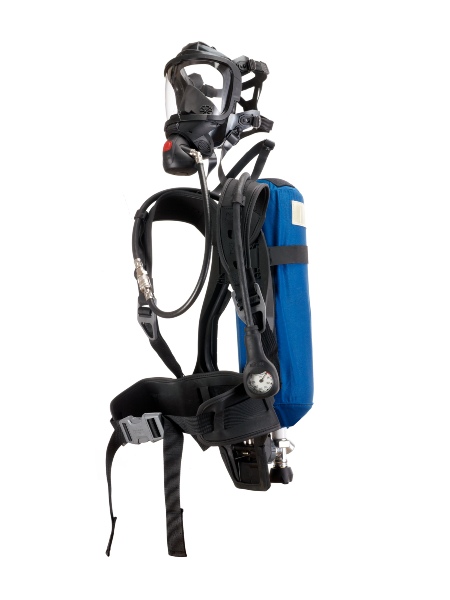

The Dräger PSS® 3000 is a high performing breathing apparatus for firefighters. Combining comfort with exceptional pneumatic performance, it is designed for applications where simplicity and ease of use are key essentials. Lightweight yet robust, and easy to don, this advanced breathing apparatus provides the ultimate in breathing protection.

This set includes:

-PSS 3000

-PSS LDV

-FPS 7000 EPDM Medium

-Cylinder Air Carbon Fibre 6.8 Ltr 300 Bar RA Valve

• Basic set with QRC, shoulder pads and waist pad
• Carbon composite antistatic space frame
• Moulded handles for easy carrying
• Pull sideways waistbelt adjustment
• Camlock rubberised cylinder strap
• Accommodates single steel and carbon composite cylinders
• Sizes in range 4L 200 to 9L 300 bar
• Balanced 1st stage reducer for 200 bar or 300 bar cylinder
• EN 137:2006 Type 2 (Fire Fighting)
• Photo-luminescent pneumatic pressure gauge
• Pneumatic warning whistle integrated with gauge at chest

Dräger PSS 3000 is one of the lightest self contained breathing apparatus carrying system available. We have applied the same advanced technology and design philosophy which was derived from our class leading range of short and extended duration professional breathing apparatus. The extremely durable carrying system features our ultra lightweight, high strength carbon composite carrying frame which exhibits outstanding thermal, impact and chemical resistance properties.

Suitable for use in all conditions easy and quick to don, the lightweight harness has been specially designed to retain its form over a wide range of environmental temperatures and conditions. Utilizing materials which have good chemical and abrasion resistance and also meet the heat and flame requirements of EN137:2006 (Type 2).

Versatility is the foundation of the Dräger PSS series of products. The breathing apparatus PSS 3000 enables the wearer to benefit from leading edge breathing protection technology incorporating, the same advanced pneumatic system used in our class leading breathing apparatus.

Quick and uncomplicated to service, the breathing apparatus PSS 3000 incorporates a number of unique design features to ensure that downtime, and therefore costs, are kept to a minimum during maintenance. All the major components are simple and quick to remove and re-assemble. The harness is attached to the carrying frame by a single-piece retention method. In addition the first stage pressure reducer, integrated into the carrying frame for added protection, can be readily removed.

Options for every eventuality:

• Choice of lung demand valves
• Full FPS 7000 facemask configuration options
• Utilizing the proven PSS 7000 pressure reducer
• Electronic voice communications
• Dräger compressed air breathing cylinders
• Secondary supply hose connections for rescue and decontamination
• Available with Pneumatic gauge or electronic TX gauge and integrated PASS (Bodyguard 1500)

High performing, easy to use and with proven technology, the Dräger PSS 3000 guarantees a lifetime of depenable service whilst at the same time minimizing the costs of ownership.

By utilising the state-of-the-art pressure mapping technology, we have developed a carrying system which follows the natural contours of the body and therefore provides improved stability and reduced back strain, stress and fatigue. The contoured carrying harness provides maximum comfort at both the shoulders and the waist, but optimizes load distribution comfortably and securely, in line with the body’s centre of gravity. Despite this emphasis on wearing comfort, you can rest assured that we have not compromised on the choice of the most rugged and durable materials available, in order to minimize the impact of the most hostile of environments.

Both the medium pressure air supply and gauge hoses are integrated into the carrying-frame to reduce the risk of snagging and entanglement, which results in improved security and safety whilst entering and working in confined spaces. With the ability to re-route these hoses from one side to the other in order to suit customer preferences for gauge access, this design feature also facilitates the easy replacement of each hose.
