XPR-5568

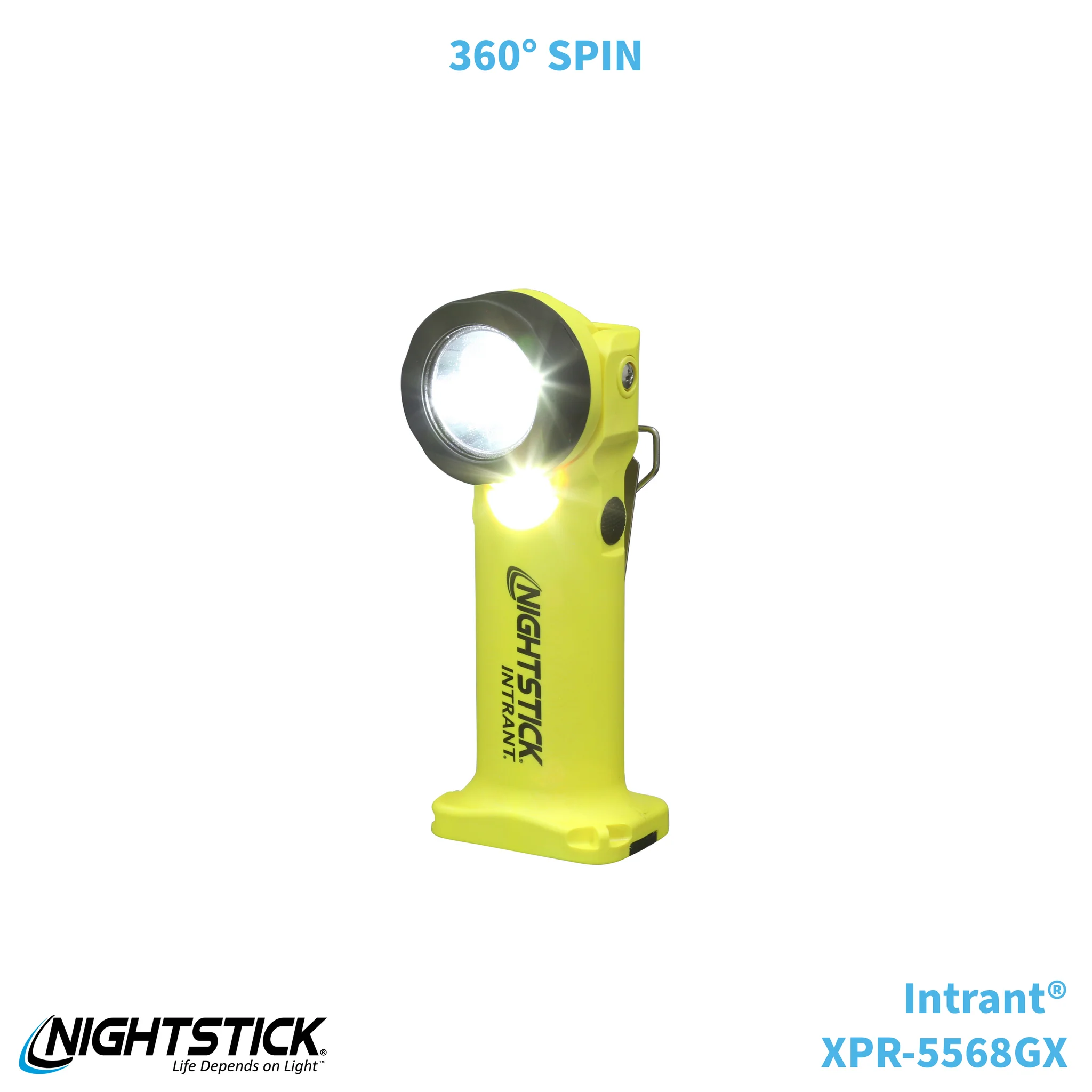

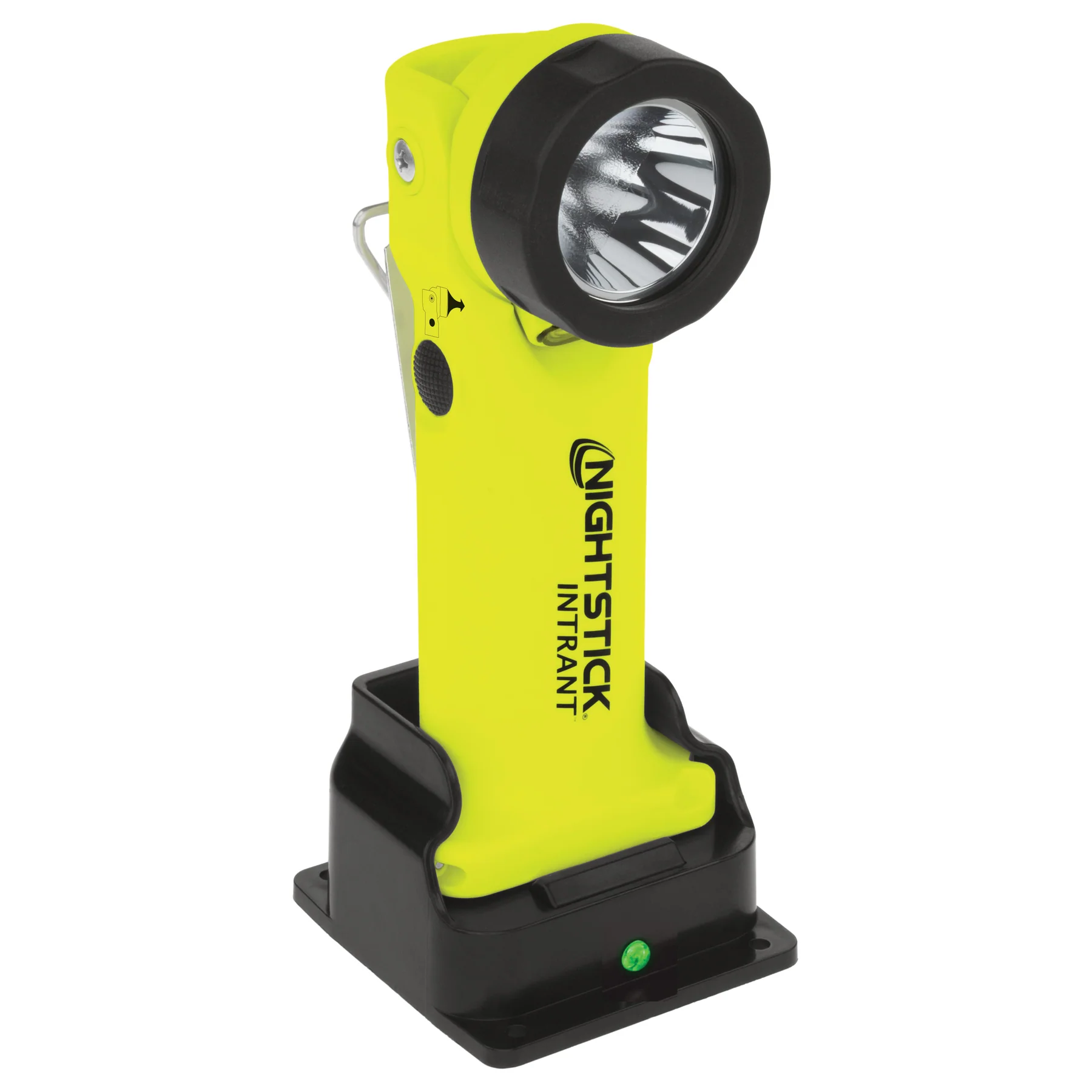

The INTRANT® Intrinsically Safe rechargeable angle light is a flashlight, a floodlight, and a Dual-Light angle light that is cULus, KOSHA, UKCA, ATEX Zone 0, IECEx, and INMETRO certified Intrinsically Safe.

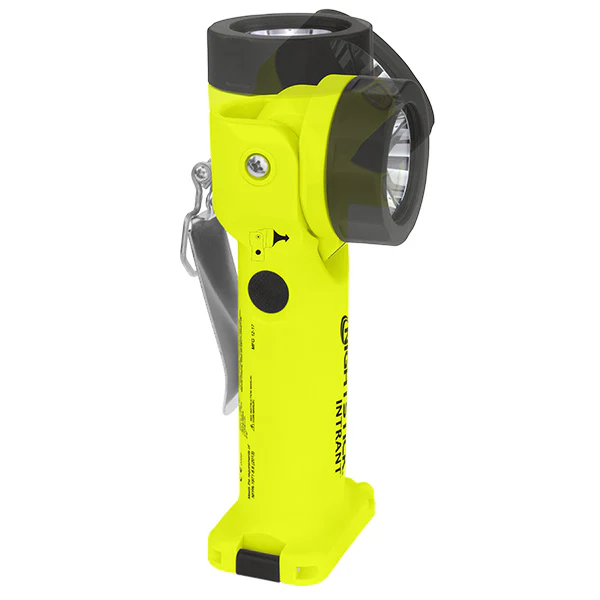

The flashlight rotates 90 degrees up and down with a 45 degree downward angled floodlight. Multiple settings offer user-selectable brightness of 200, 110, and 60 lumens with a 401 meter beam distance. The ultra-tight beam is perfect for cutting through smoke and lighting up objects at great distances. The floodlight setting has user-selectable brightness settings of 100, 40, and a Survival Mode of 20 lumens that provides just enough light in an emergency situation with a run-time of 27 hours. The Dual-Light mode allows the user to simultaneously see objects at a distance or through the smoke, as well as see the ground in front of them as they walk or work.



Powered by a rechargeable Li-ion battery pack and includes a AA battery carrier to provide backup power if needed. Rated IP-67 dustproof/waterproof. Meets the requirements of NFPA-1971-8.6 (2018).

  • cULus, KOSHA, UKCA, ATEX, IECEx and INMETRO listed Intrinsically Safe
  • Flashlight – Floodlight – Dual-Light
  • LED technology
  • 8 User-selectable brightness settings for the Flashlight and Floodlight including a 20 Lumen Survival Mode
  • High-efficiency deep parabolic reflector creating a sharp focused flashlight beam
  • Dual-Light (both the flashlight & floodlight on at the same time) provides for maximum lighting versatility and user safety
  • Glass-filled Nylon Polymer housing

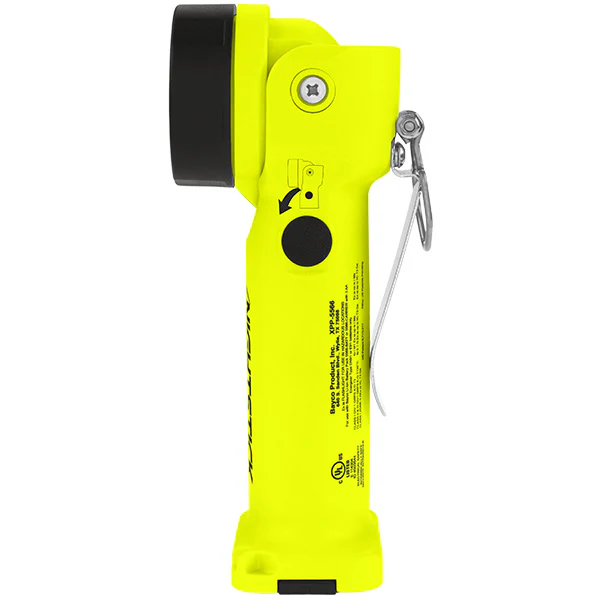

  • Dual body switches

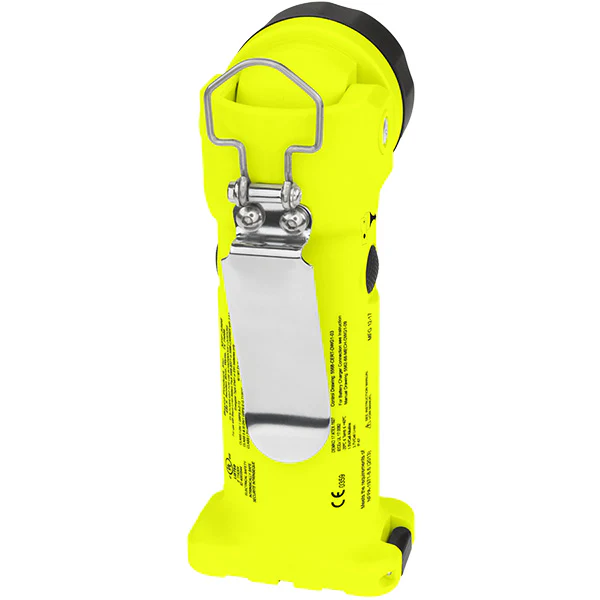

  • Heavy-duty stainless-steel pocket clip
  • Battery charge status indicator (for use only with rechargeable battery)
  • IP-67 Dustproof / Waterproof
  • Impact & chemical resistant
  • Meets requirements of NFPA-1971-8.6 (2018)
  • Powered by a Rechargeable Lithium-ion Battery (included)
  • Serialized for personal identification
  • Includes a AA Battery Carrier for backup power if needed
  • Charge Input: 24VDC max.
  • Limited Lifetime Warranty
  • UPC: 017398806305
  • Multi-Function: Yes
  • High Lumens: 200
  • Medium Lumens: 110
  • Low Lumens: 60
  • Floodlight Lumens: 100
  • Flood Medium Lumens: 40
  • Flood Low Lumens: 20
  • High DL Lumens: 205
  • High Beam Distance (m): 401
  • Medium Beam Distance (m): 250
  • Low Beam Distance (m): 187
  • High Candela: 40,256
  • Medium Candela: 15,625
  • Low Candela: 8,750
  • Drop Rating: 2 m
  • Water Rating: IP-67 Dustproof/Waterproof
  • High Runtime (h): 7
  • Medium Runtime (h): 15
  • Low Runtime (h): 27
  • High Flood Runtime (h): 7
  • Medium Flood Runtime (h): 15
  • Low Flood Runtime (h): 27
  • High Dual-Light Runtime (h): 7
  • Strobe: Yes
  • Charge Time (h): 6
  • Floodlight Color: White

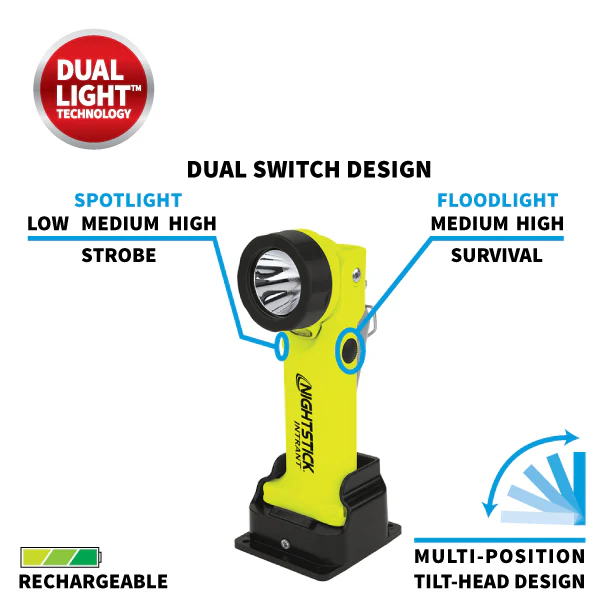

  • Switch Function: Dual Body Switches – High/Medium/Low/Strobe Flashlight, High/Medium/Survival Floodlight, Dual-Light
  • Light Source: LED
  • Serialized: Y
  • Case Material: Glass-filled Nylon Polymer
  • Body Color: IS Green/Black
  • Quantity of Batteries: 1
  • Power Source: Li-ion Rechargeable

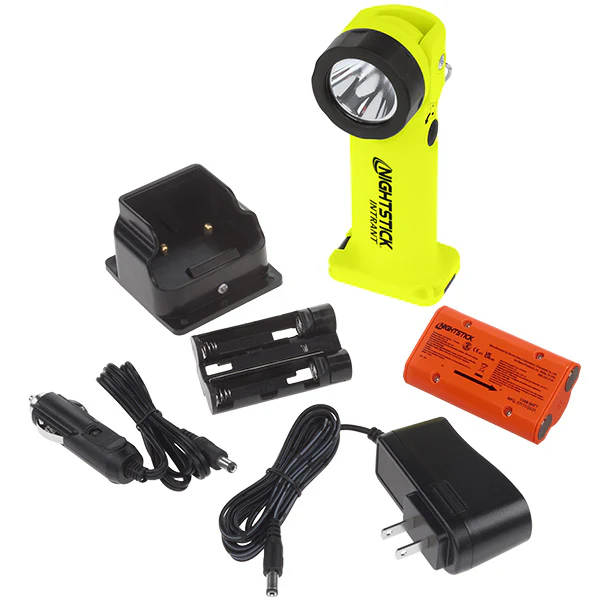

  • Package Contents: Light, Rechargeable Li-ion Battery, Charger, AA Battery Carrier, AC/DC Cords
  • US Patent(s) : 9713217 and 10119663
  • Warranty: Limited Lifetime Warranty
  • Length: 6.6 in (168 mm)
  • Width: 2.6 in (66 mm)
  • Depth: 2.6 in (66 mm)
  • Weight: 10.6 oz (301 g)
  • Head Diameter: 2.1 in (53 mm)

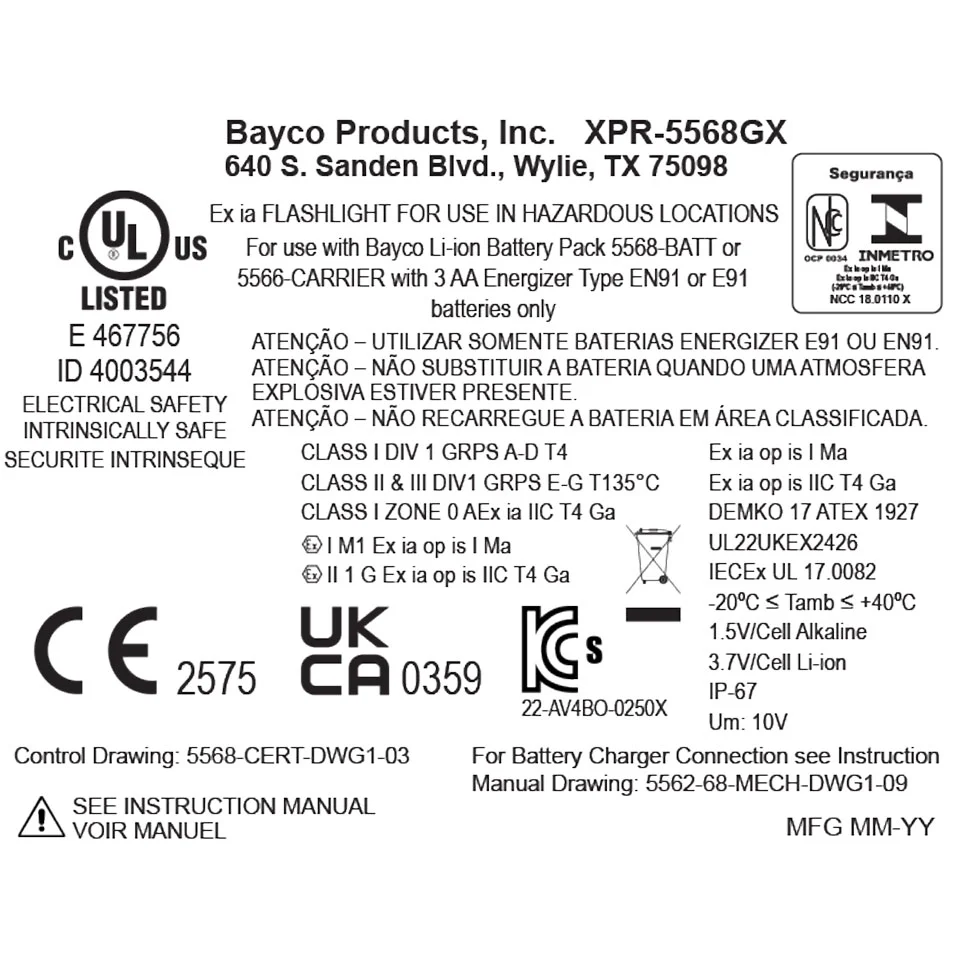

Approval Lab Product Rating

  • CLASS I DIV 1:GRPS A-D T4
  • CLASS II & III DIV 1:GRPS E-G T135°C
  • CLASS I ZONE 0:AEx ia IIC T4 Ga
  • ATEX Certification:Ex ia op is I Ma
    Ex ia op is IIC T4 Ga
  • IECEx Certification:I M 1 Ex ia op is I Ma

NIGHTSTICK® – Performance, Quality and Value

Nightstick, designed and manufactured by Bayco Products, Inc., is a global brand of professional lighting products including flashlights, headlamps and Intrinsically Safe lighting solutions that exceed the industry standards in performance, quality, user-safety and value.



Real-world Product Performance:

Nightstick products are built not only with lumen ratings that exceed most competitor products, but also with optimized performance characteristics such as candela, beam distance and run-times. The design must take into consideration all of these factors to impact a light’s efficiency and performance. Nightstick products are also designed and manufactured using the best quality housing materials, precision engineered reflectors, reliable real-world switch functionality, state-of-the-art electronics and latest generation battery technology. Innovations such as Nightstick’s exclusive Dual-Light design, combining a flashlight and a floodlight into a single light with the ability to turn both on simultaneously for added versatility and safety, is altering the idea of what a flashlight is. Further evidence of this innovative thinking is shown by our complete line of Intrinsically Safe lights that have the highest safety ratings in the world.



Unwavering Commitment to Quality:

All products produced in Bayco Products’ dedicated ISO 9001 Certified Factories undergo rigorous quality control inspections conducted by independent 3rd party inspectors at multiple points during the manufacturing process. Additional quality control inspections take place as products arrive and leave Bayco Products’ distribution facility. Quality is also demonstrated in the customer service experience…with a target of nothing less than 100% customer satisfaction.



Exceptional Value:

Quite simply, the Nightstick product line is designed and manufactured to outperform and be of a higher quality standard than any other product in its class. Even with the highest quality standards, Nightstick products cost less as compared to competitor offerings. We remain committed to delivering the industry’s best performing, highest-quality products at the lowest cost possible.



Portable Lights American Trade Organization (PLATOTM)

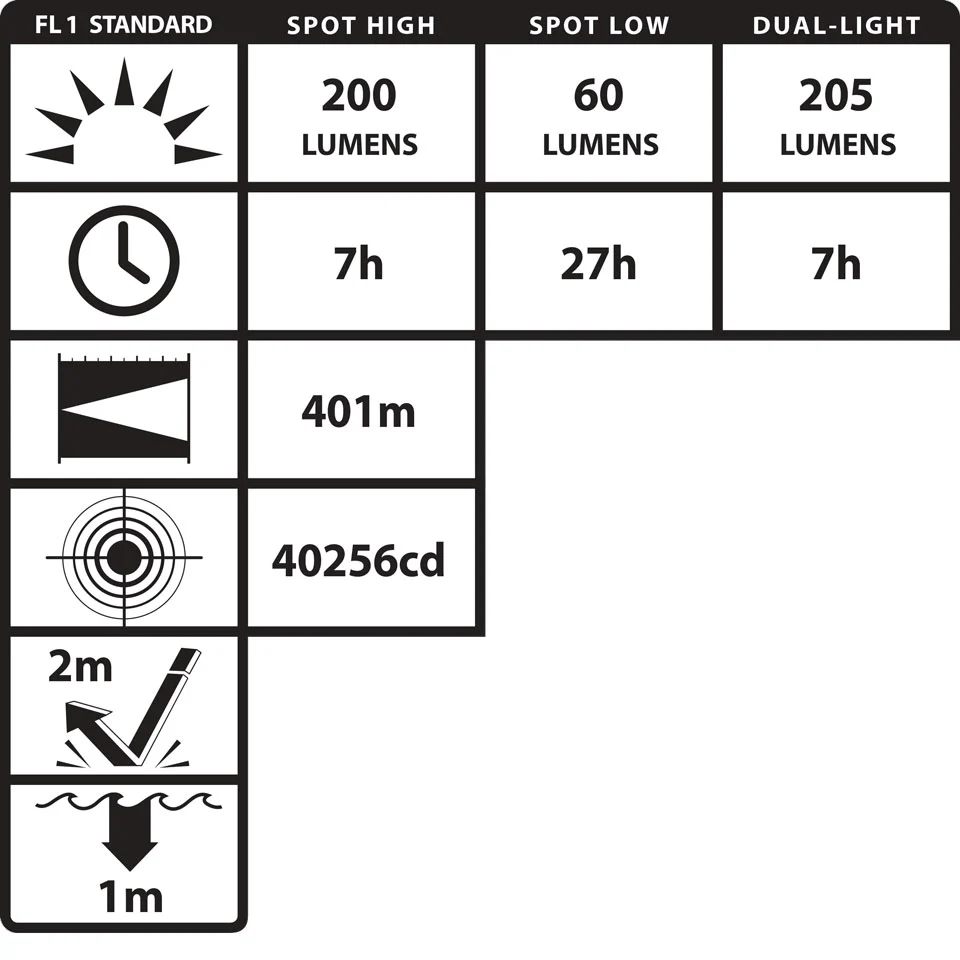

Nightstick is a proud member of the Portable Lights American Trade Organization (PLATO™). As a member, Nightstick products follow the ANSI/PLATO FL-1 compliance standard for directional light. For more information on ANSI-FL1 Standard, please click here.
