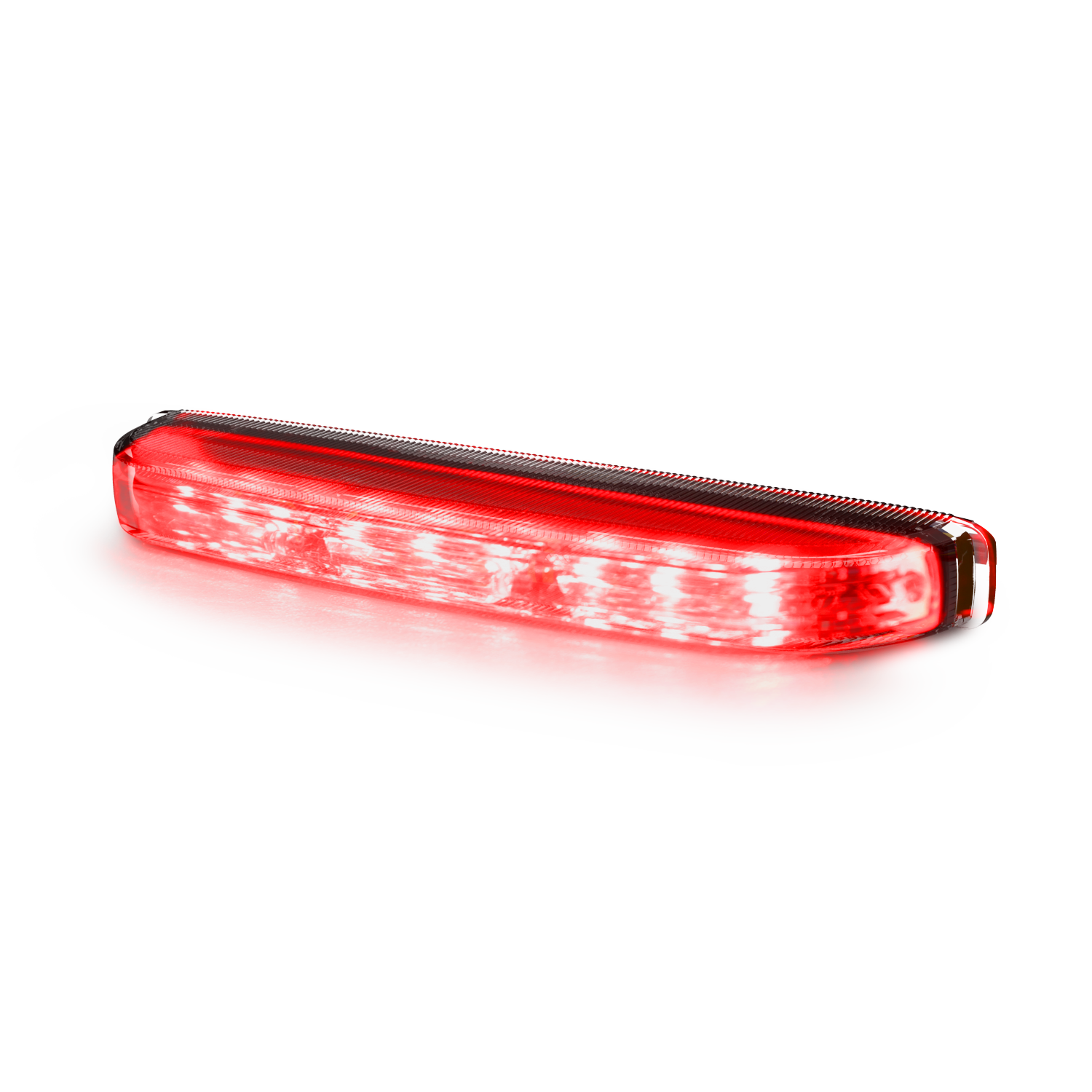

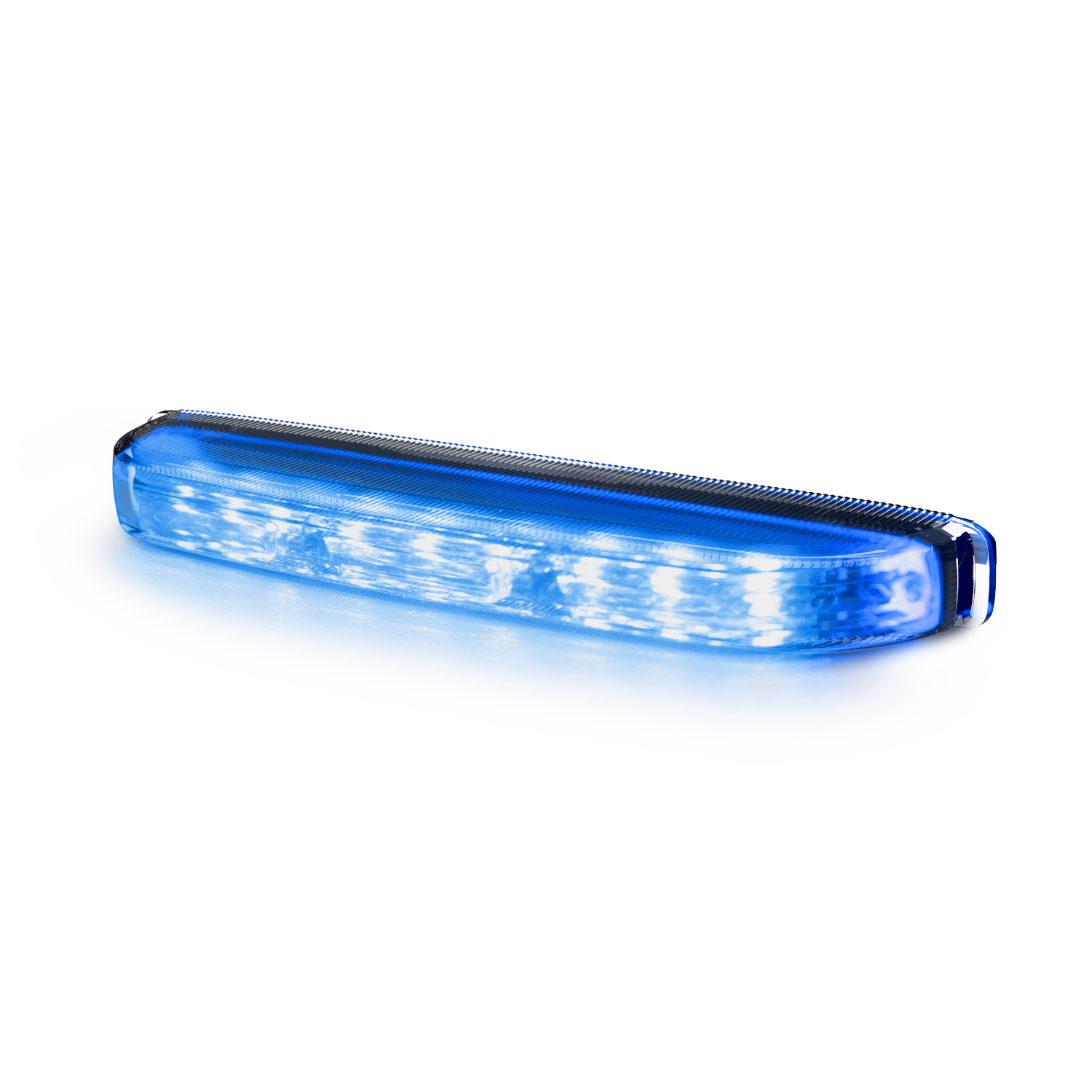

The CD5050 Directional LED Warning Lamps are bright and versatile warning lamps which are suited to a wide variety of applications.



Their shallow profile makes them ideal for installation in vehicle front grilles with minimal modification to the vehicle.



This makes them suitable for fitment to cars, vans, trucks and any vehicle with limited forward facing flat surfaces, they also lend themselves to covert installations.



They feature wide angle optics and multiple flash patterns, including synchronisation with other units for simultaneous or alternating operation. CD5050T dual-colour modules feature 18 LEDS and have 12 flash patterns.

  • CD5050T dual-colour
    modules feature 18 LEDS and have 12 flash patterns.

• Eighteen high-intensity LEDs.
• ECE R65 light output.
• Multiple heads are synchronisable.
• Colourless when not illuminated.
• Operating Voltage: 10-30VDC
• Dimensions 25mm x 136.3mm x 15mm

Mount Grille
Flash Pattern 12
Approval R65R10IP67
Height 25
Length / Width 136
Depth 15
Warranty 5 YEAR
Voltage 10-30 V
Amps 0.8



Code 3 CD5050 Series Grille Mounted Design

SKU

CD5050
