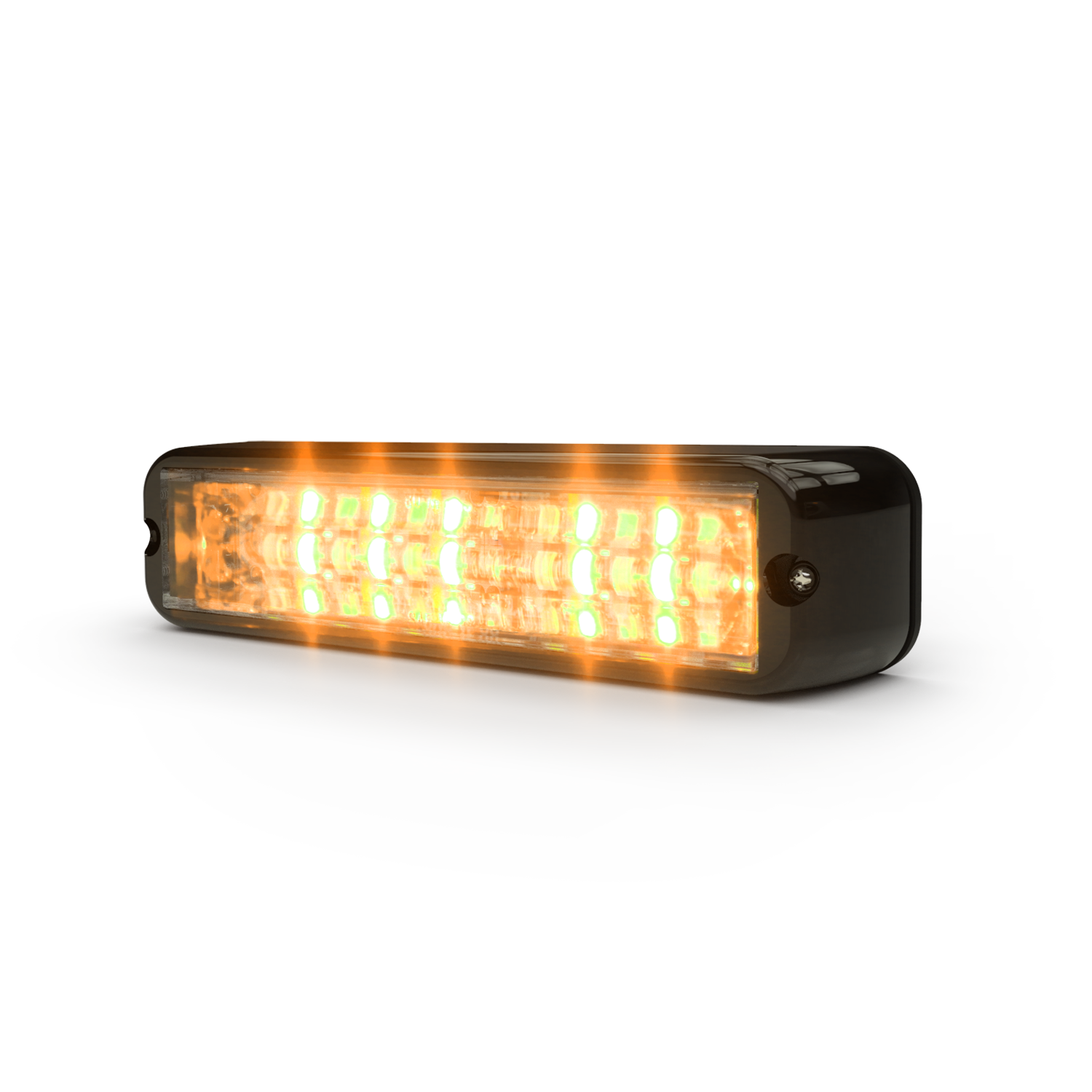

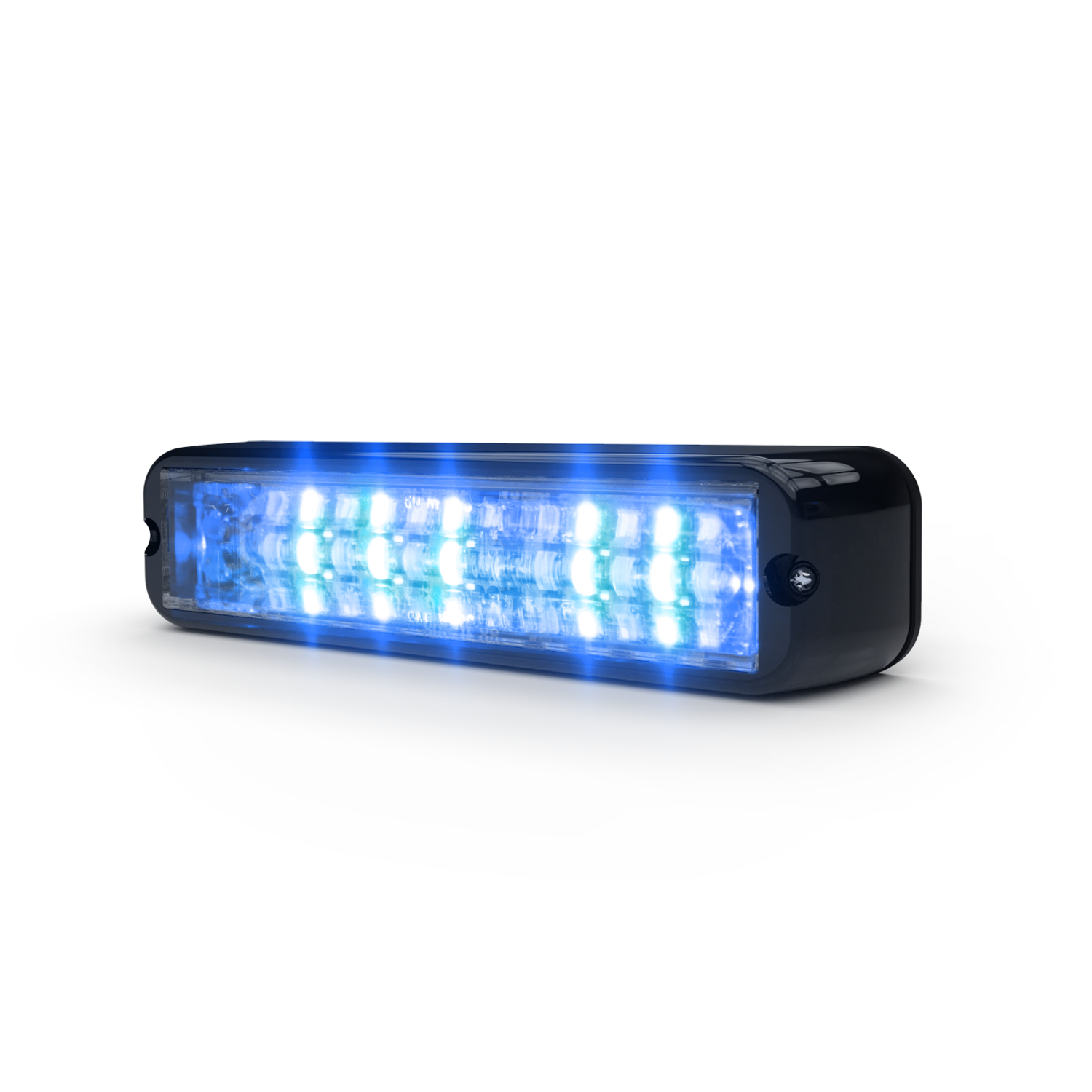

Code 3 Chase Series LED Surface Mount – Multi- and Tri-Colour LED Exterior Light

Chase™ is an exterior LED warning light that can be programmed to flash colours individually or alternately. It is available in single-, dual- and tri-colour LED configurations with five colour options. Features include aluminium housing, polycarbonate lens and encapsulated electronics that resist moisture and corrosion.

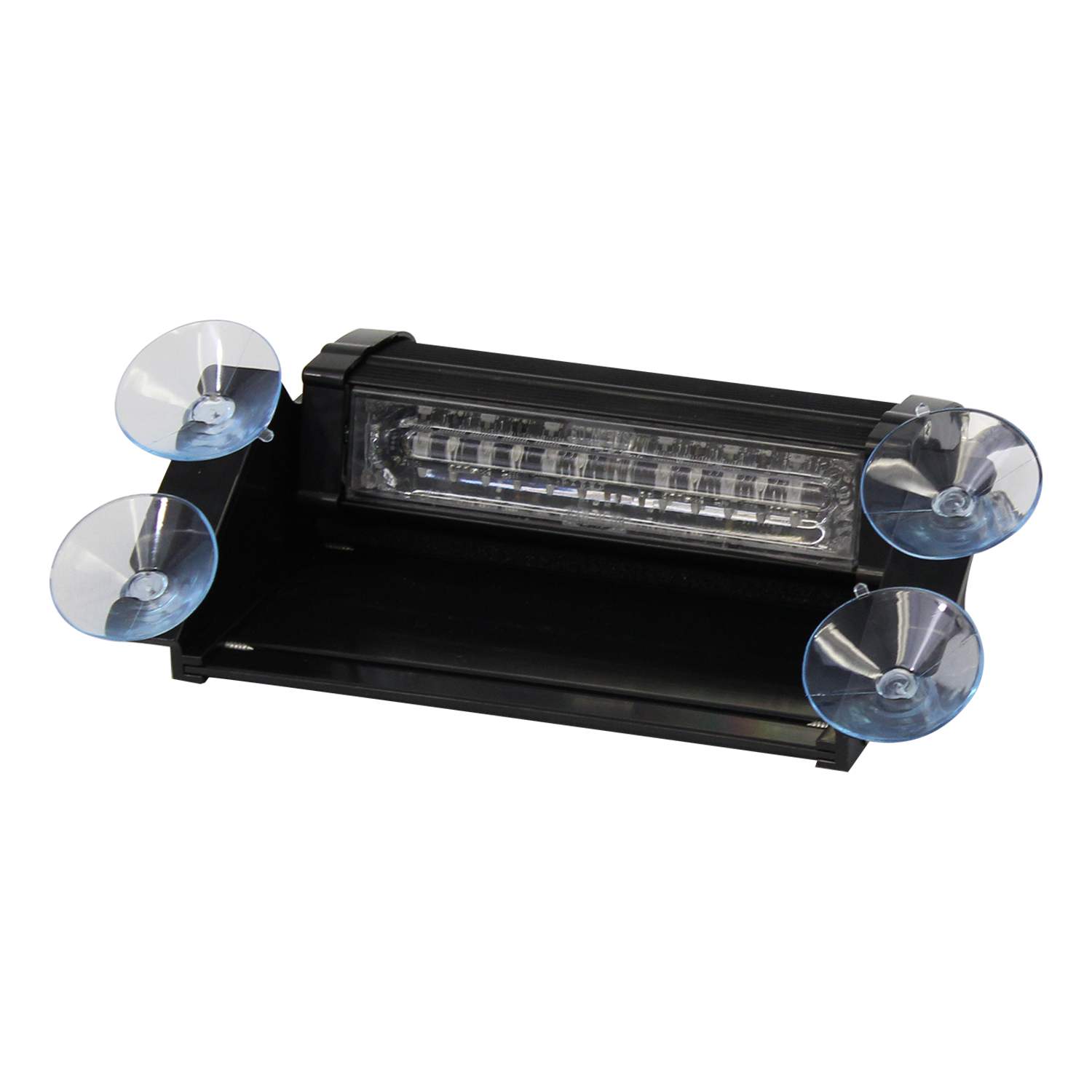

Also available in a Window/Deck Mount Option



  • Increases visibility and safety in a large footprint, making it extremely bright
  • Delivers durability in an aluminum bezel in black or chrome
  • 12 LED multi-colour featuring 69 flash patterns
  • 18 LED tri-colour featuring 24 flash patterns per colour mode configuration
  • Syncs with Code 3’s Chase™, MR6, and M180™ exterior lights
  • Multi-colour LEDs can be programmed to flash either colour individually or alternately
  • Each tri-colour LED colour can be controlled independently
  • Electronics are fully encapsulated
  • Aluminium housing, polycarbonate lens
Module Type 12 LED
Flash Pattern 69
Approval SAE J595 Class ICalifornia Title 13ECE R65R10
Height 1.4
Length / Width 6.4
Depth 1.2
Warranty 5 YEAR
Voltage 12 or 24 V
Amps 0.9

  • 69 flash patterns
  • Synchronize to Code 3’s Chase™, MR6, Mega Thin™, and M180 families
  • Four suction cups to mount to front or rear windshield and two L-brackets for deck mounting
  • Rear carriage bolt track for easy mounting with existing brackets
  • Aluminum housing
  • Dual-switch control
  • 8.5 foot cable

DOWNLOAD PDF FOR THIS PRODUCT

Code 3 Chase Series LED Surface Mount – Multi- and Tri-Colour LED Exterior Light

SKU

CD3766++


Download PDF
