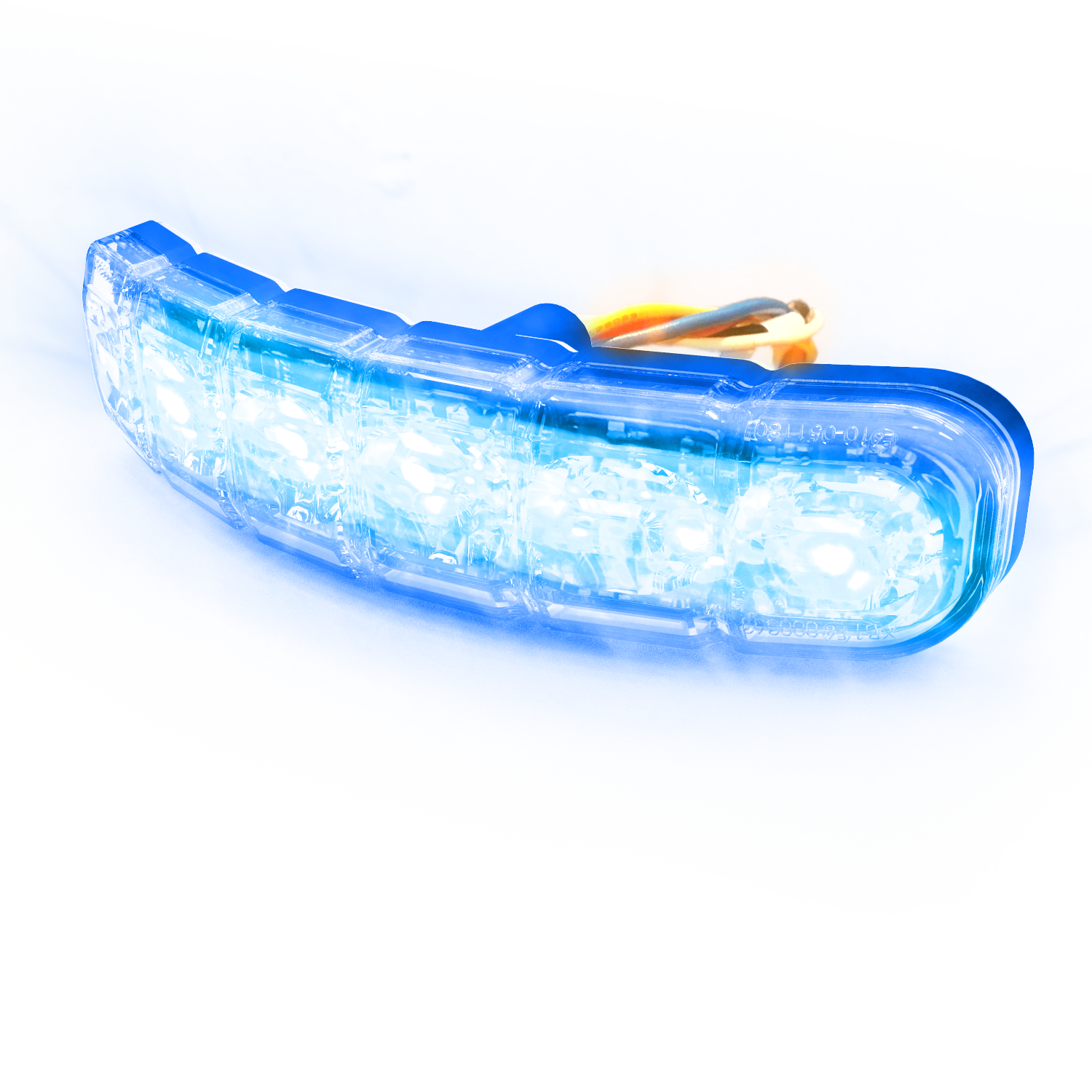

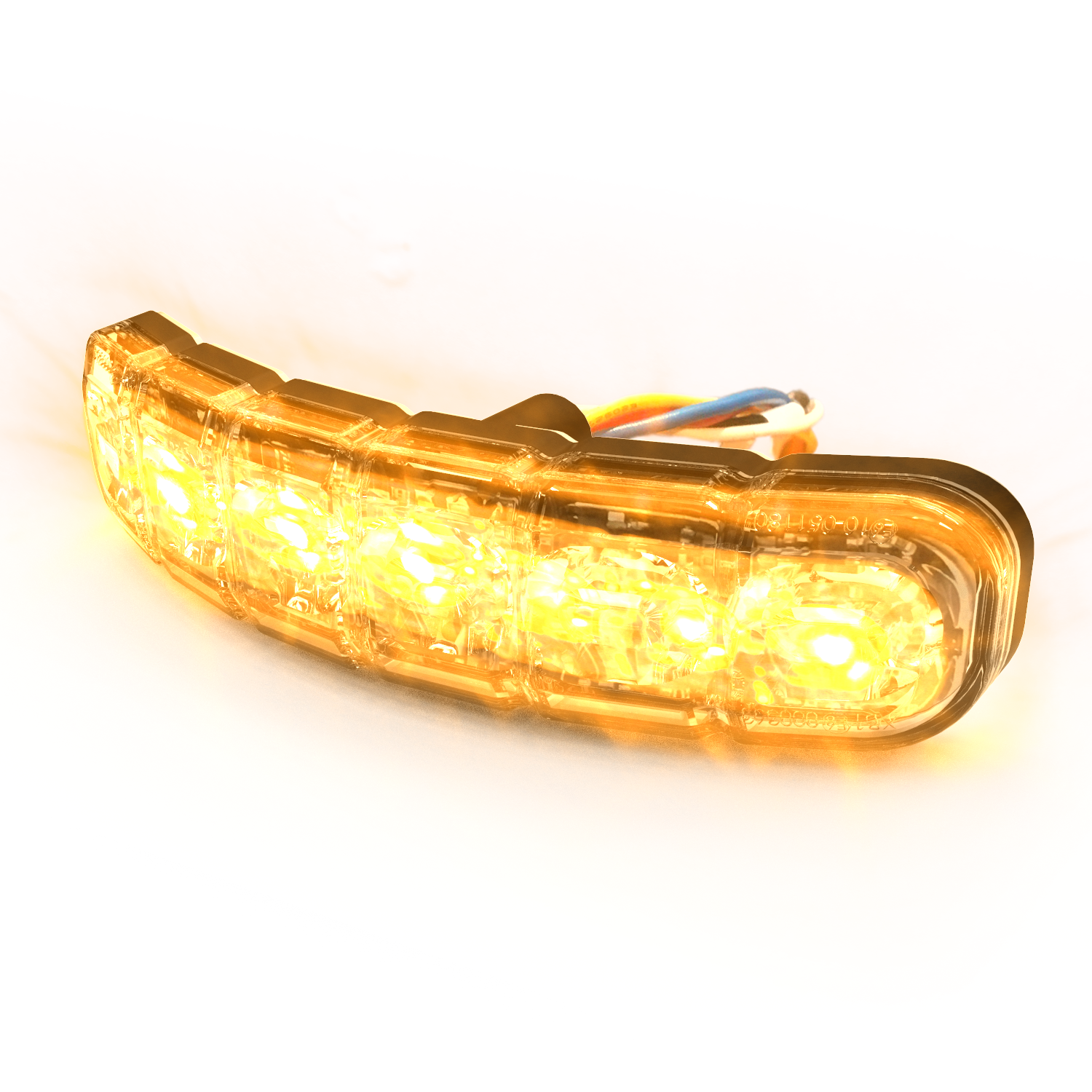

Code 3 is excited to introduce their latest directional warning light the CD3794 MegaFlex™️ Series.

This versatile LED warning light can be mounted on flat surfaces, with an included bezel, or curved surfaces, up to 120° with the use of self-adhesive, very high bond tape.

The silicone-based lens allows for maximum flexibility while resisting warping and yellowing.

Its 12 dual-colour LEDs can produce up to 69 flash patterns, delivering a brilliant warning capability on hard-to-mount surfaces. Colour combinations of amber, white, blue and red are available. A two-bolt bezel is also included for easy installation on flat surfaces.

Like all new Code 3 products, the CD3794 MegaFlex™️ Series is backed by a no-hassle warranty along with the best customer and technical service support in the industry.



  • Allows for virtually unlimited mounting possibilities with surface, flush, or hood mount
  • Delivers exceptional straight on and off-angle performance with either its total internal reflector (TIR) or linear optic technology

• 12-24 VDC
• 69 flash patterns
• Flexible housing adapts to curved surfaces up to 120°
• Clear silicone lens material prevents yellowing or aging
• VHB tape mount to flat or curved surfaces
• 2-bolt mount with included bezel for flat surfaces
• Temperature range: -30°C to 50°C (-22°F to 122°F)

Mount 2 Bolt
Approval SAE CLASS ISAE CLASS IICAL13R65R10CEIP67IP69K
Warranty 5 YEAR
Voltage 12-24 V
Amps 0.8

Code 3 MegaFlex™ Series Single & Dual-Colour Flexible LED Light

SKU

CD3794++-1

  CD3794
