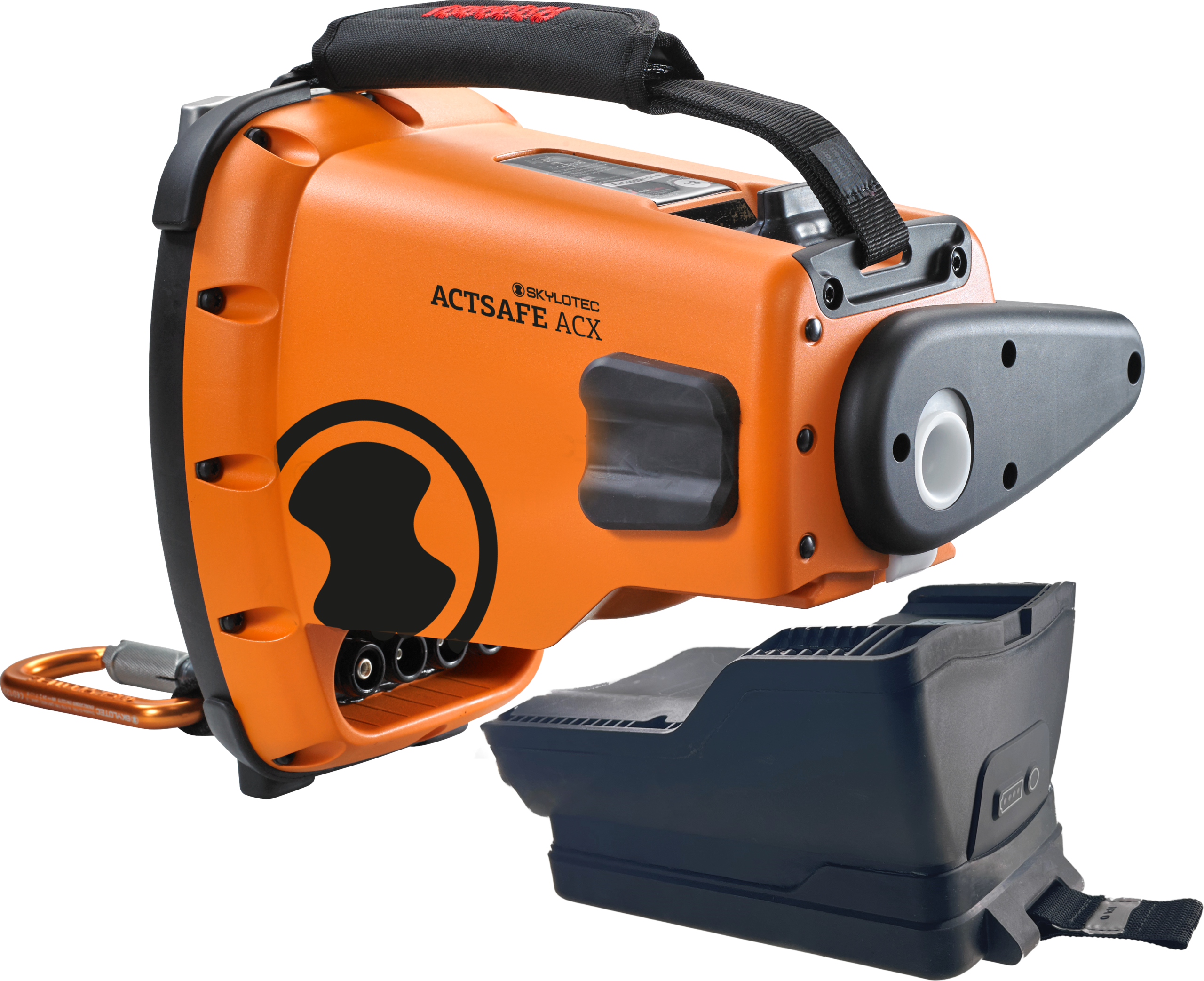

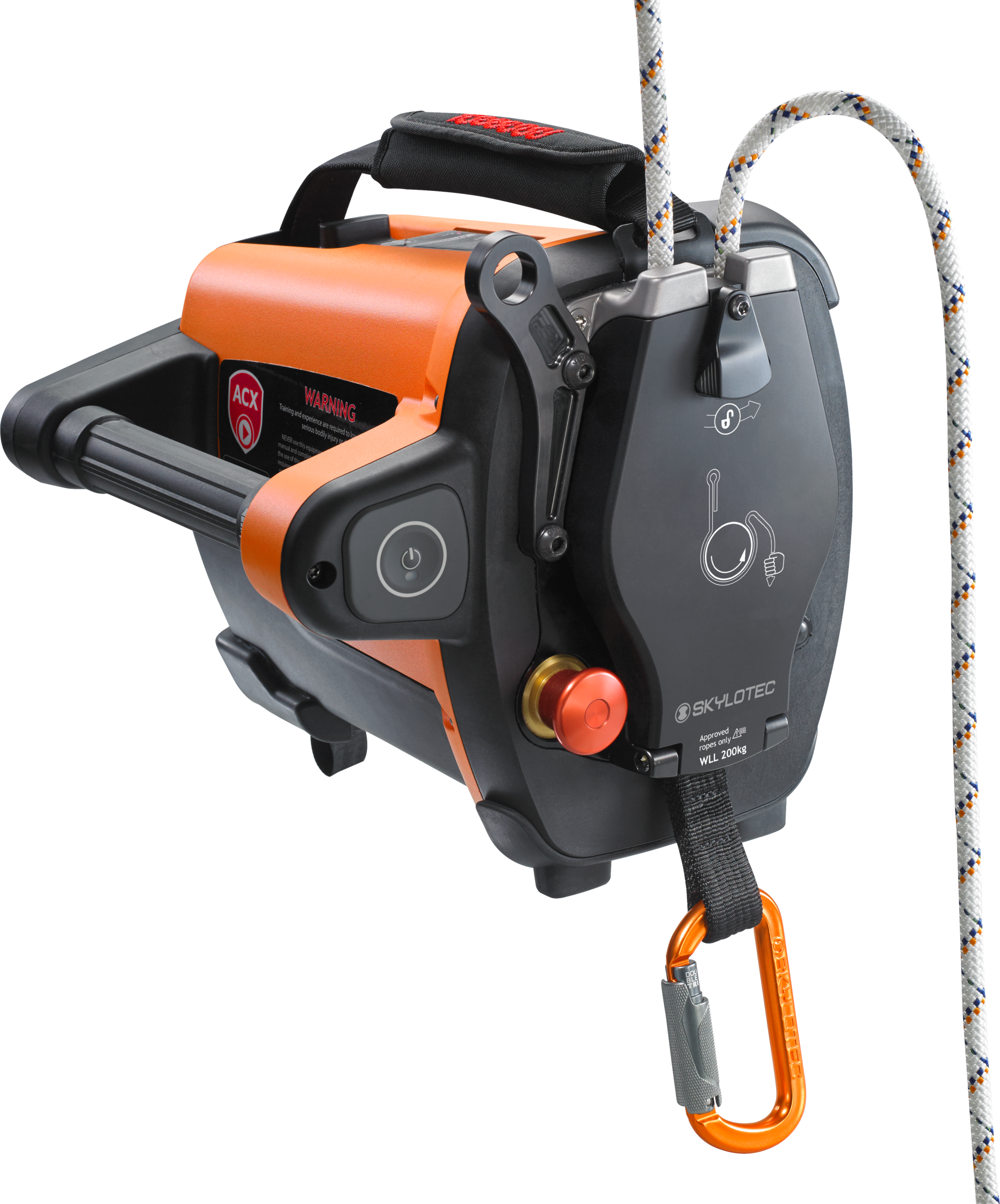

The ACX battery-powered hoist is a motorised system to ensure the transport of persons or loads to areas that are difficult to access and where occasional or recurring work is carried out. ACX is used, among other things, for cleaning facades or windows, for the maintenance of complex building structures, for the rotor blade maintenance of wind turbines or for transporting loads on masts.

The ACX POWER ASCENDER considerably simplifies and accelerates work on complex structures and makes expensive access systems or lifting platforms superfluous.

Countless rescue scenarios can also be carried out efficiently and with minimum effort with the ACX. ACX forms a highly flexible system for easy and cost-efficient cleaning or maintenance.

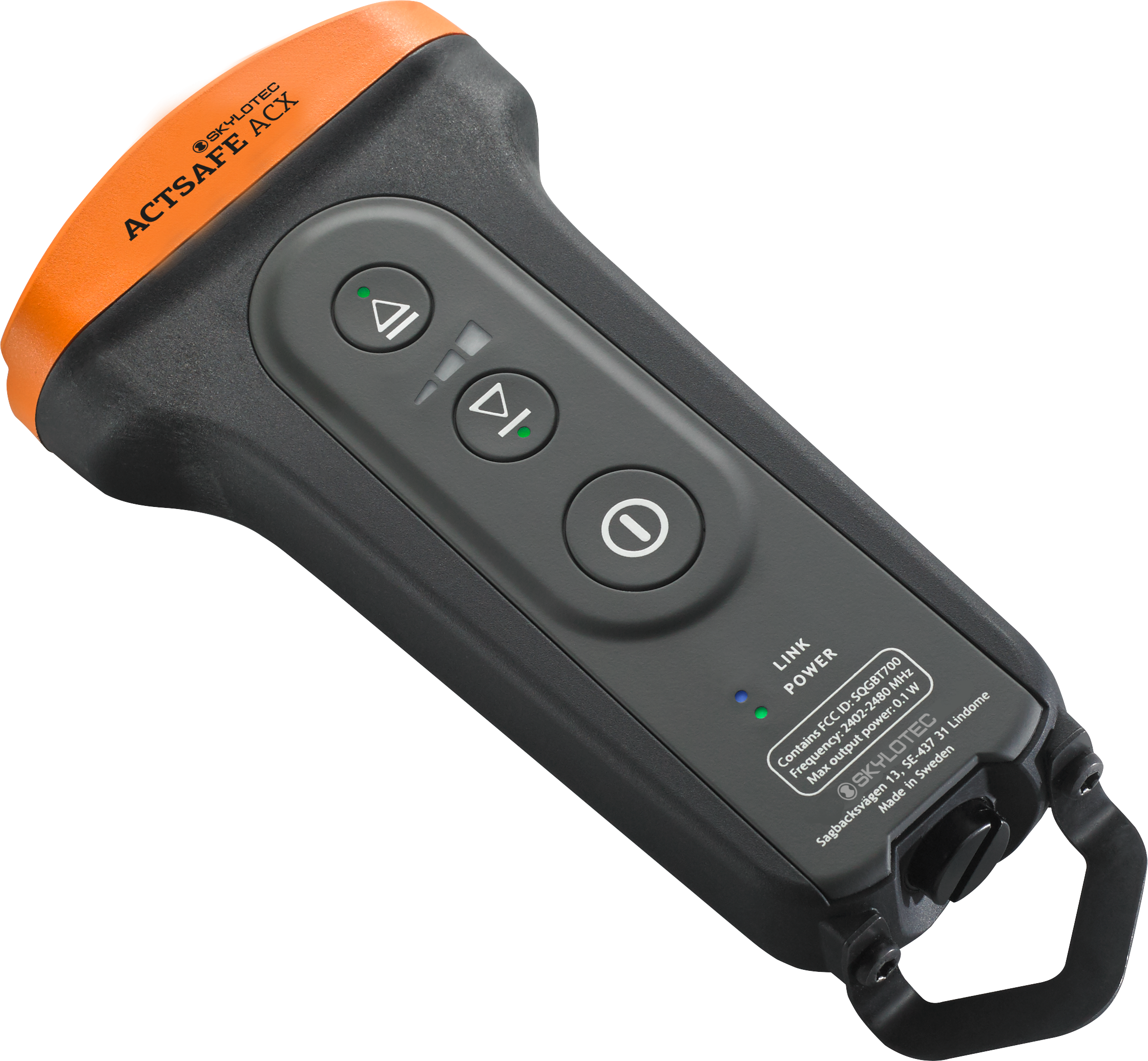

In an emergency, the ACX can be controlled by remote control.

The operation and use of the ACX can be learned in special training courses.

• Application areas

  Working on masts and towers, Working in confined spaces, Various, Scaffolding, Rope access, Rescue

• Battery range at 20° C & 100 kg load

  550 m

• Charging time

  90 minutes

• Emergency descent function

  Yes

• Emergency stop function

  Yes

• Energy source

  Removeable Battery, POA-004 power supply

• Max. ascent rate

  24 m/min

• Max. noise level

  76 dB(A)

• Maximum compatible rope diameter

  11.00 mm

• Maximum descent speed

  25 m/min

• Maximum temperature

  40 °C

• Min. ascent rate

  1 m/min

• Min. noise level

  0 dB(A)

• Minimum compatible rope diameter

  11.00 mm

• Minimum descent speed

  1 m/min

• Minimum temperature

  -10 °C

• Remote control range

  150 m

• Underwater operations

  No

• Usable in SEAL PAC

  No

• Water dust resistance

  IP 55

• Working Load Limit

  220 kg

• Material

  Aluminium, Nylon, Steel

• Colour

  Orange

• Customs tariff number

  84253100

• Gross weight

  30.00 kg

• Net weight

  30.00 kg

• Number of Rechargeable Batteries

  2

• Product heigth

  42.00 cm

• Product length

  63.00 cm

• Product width

  37.00 cm

• Regional Charger
