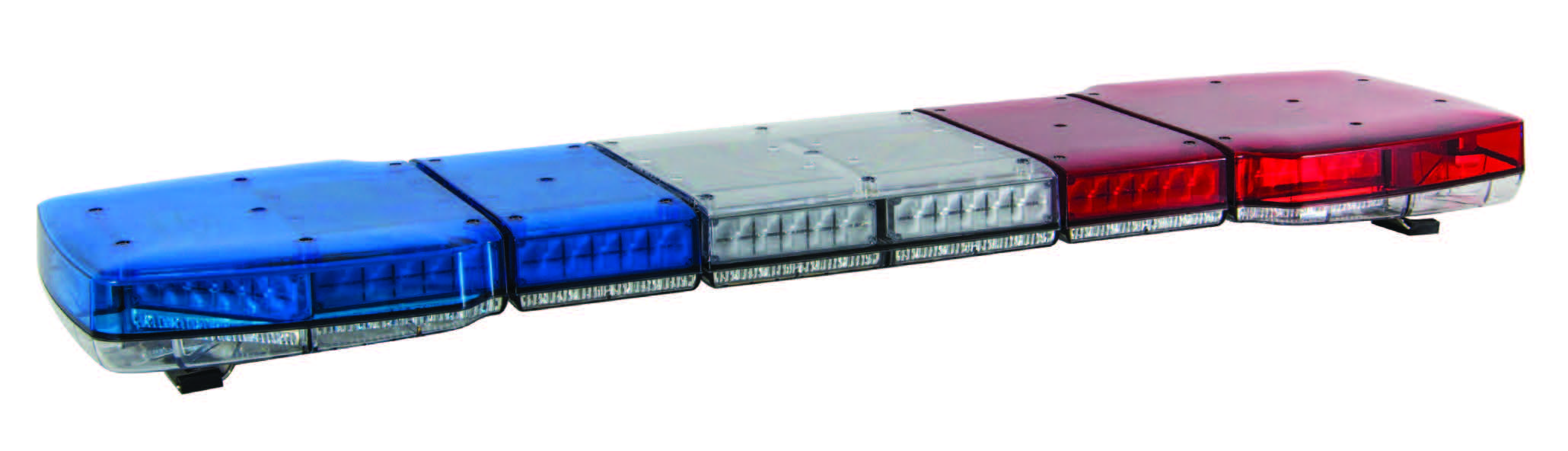

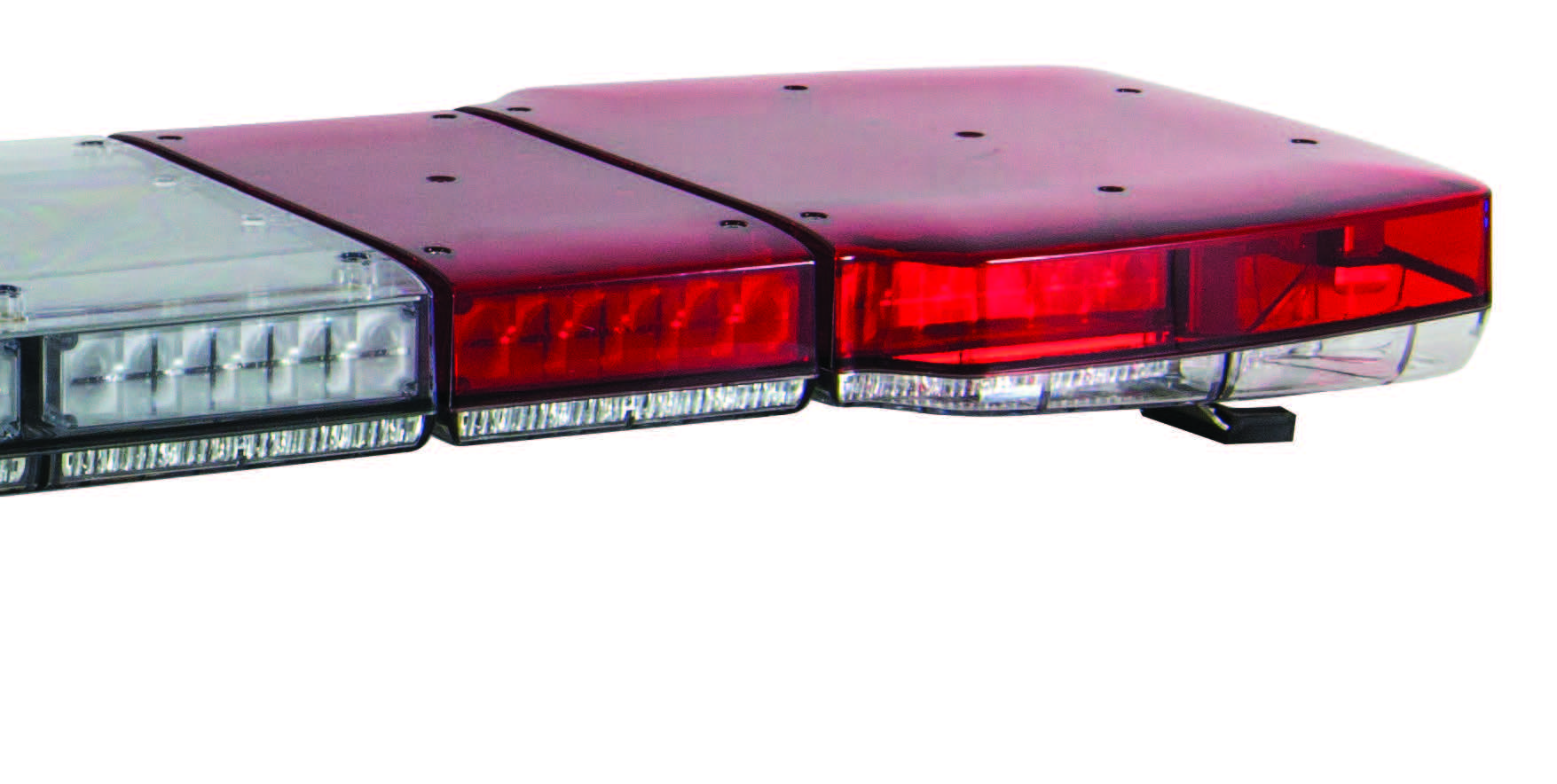

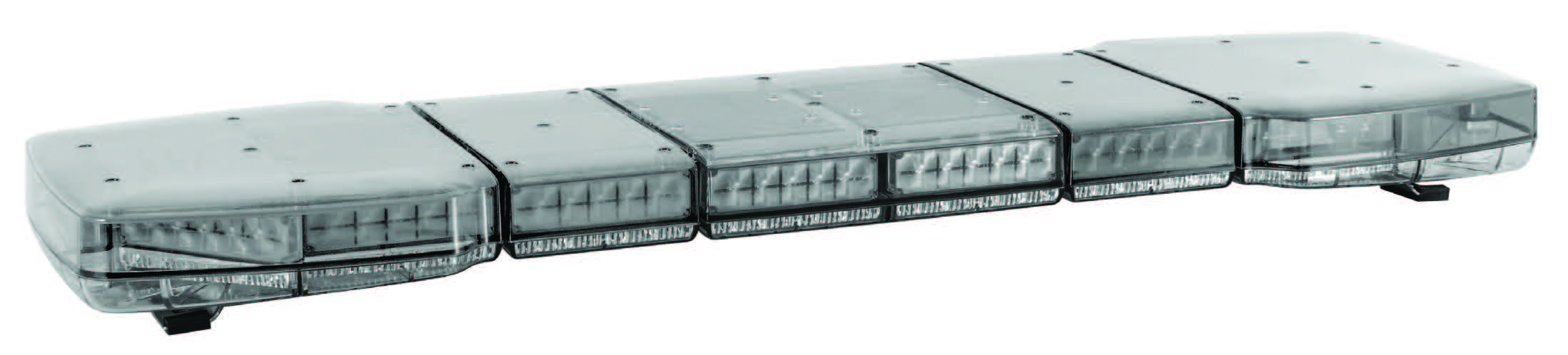

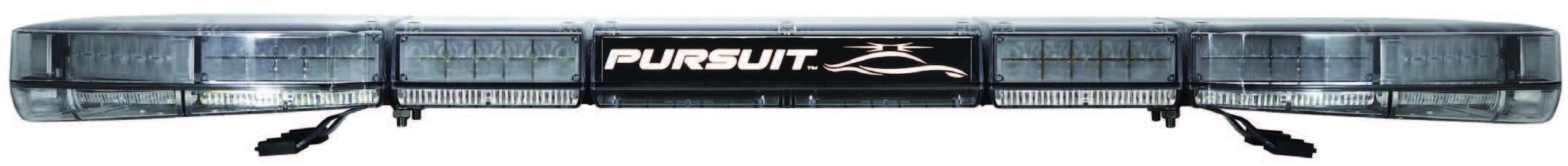

Code 3 25 Series Pursuit™ Lightbar (SAE Class I)

The Pursuit™ lightbar (SAE Class I) is uniquely designed with two complete levels of lighting in the height of a single-level lightbar.

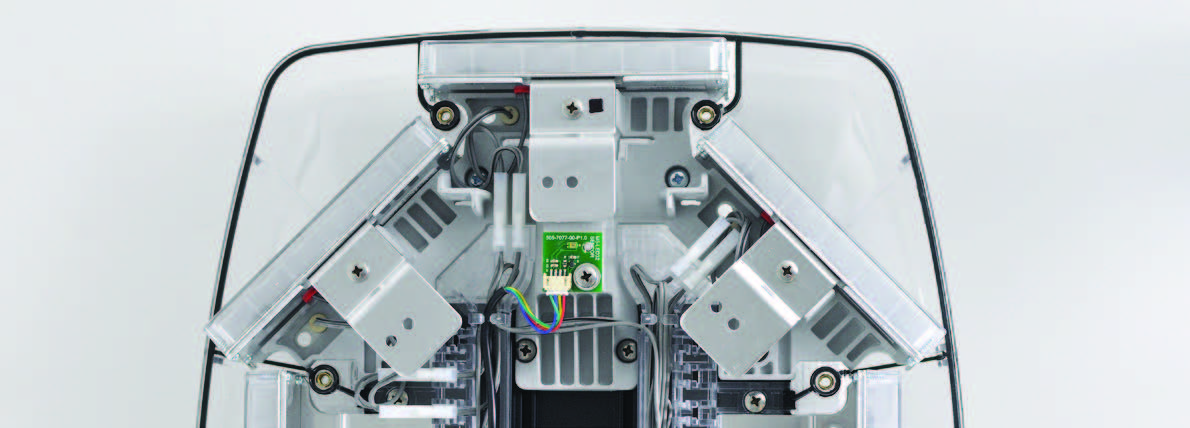

It features an integrated lens sealing system, encapsulated control electronics, internal wiring channels, auto dimming with photocell, and selectable dimming levels for each light.

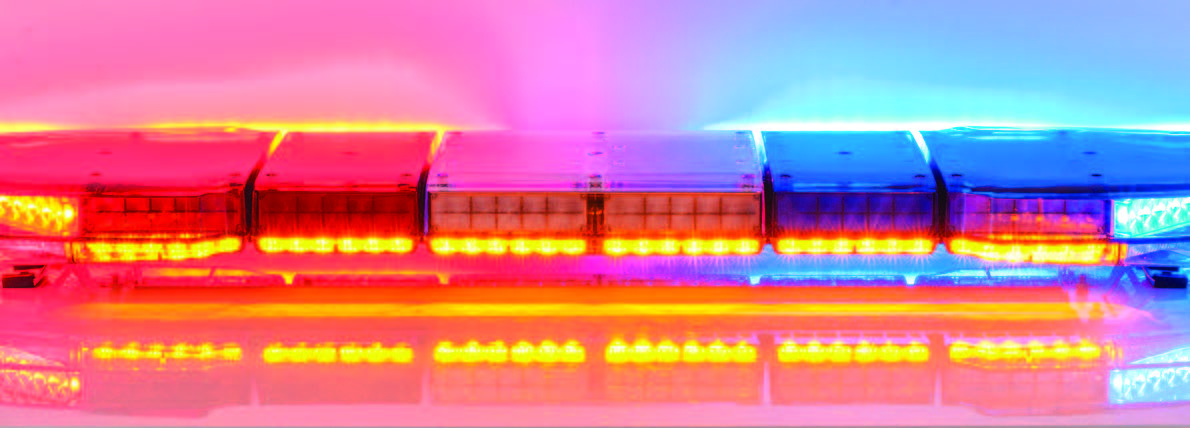

The Australian Code 3 team have created all new ProAxis Optics LED light heads with industry-leading dual colour lighthead light output.

The colour combinations and customising options with this light bar are impressive, contact us for more details.

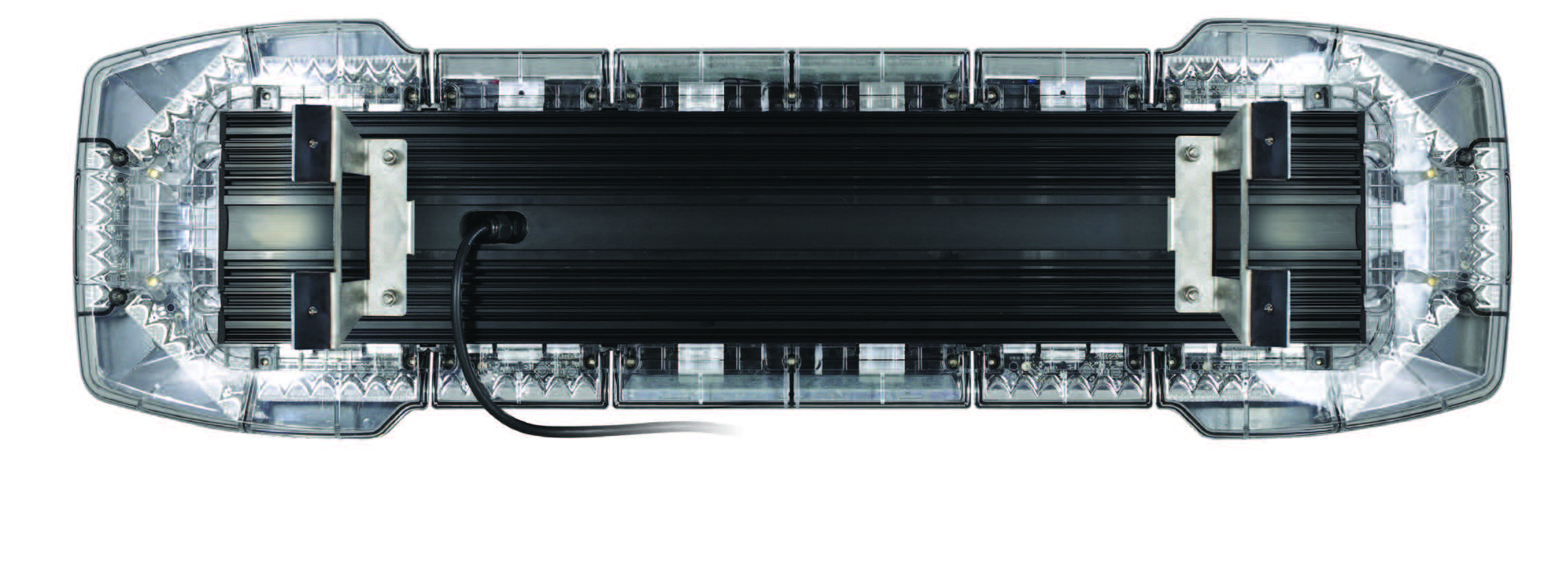

• Modular chassis construction

• 100% solid-state design

• Encapsulated control electronics

• Multi-voltage (10–30V) operation with class-leading EMC performance

• Serial HazCAN network control: thin, flexible wiring harness

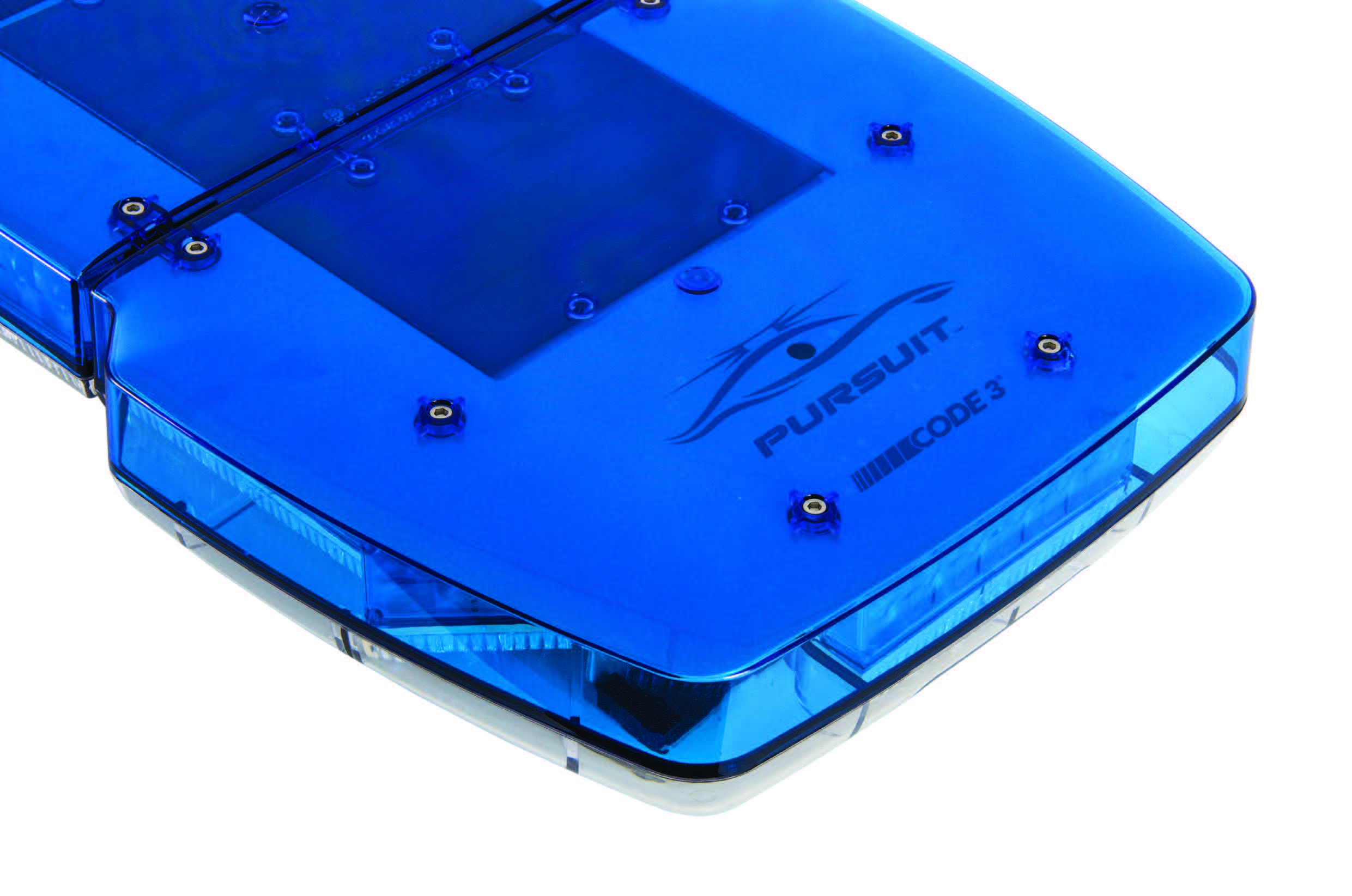

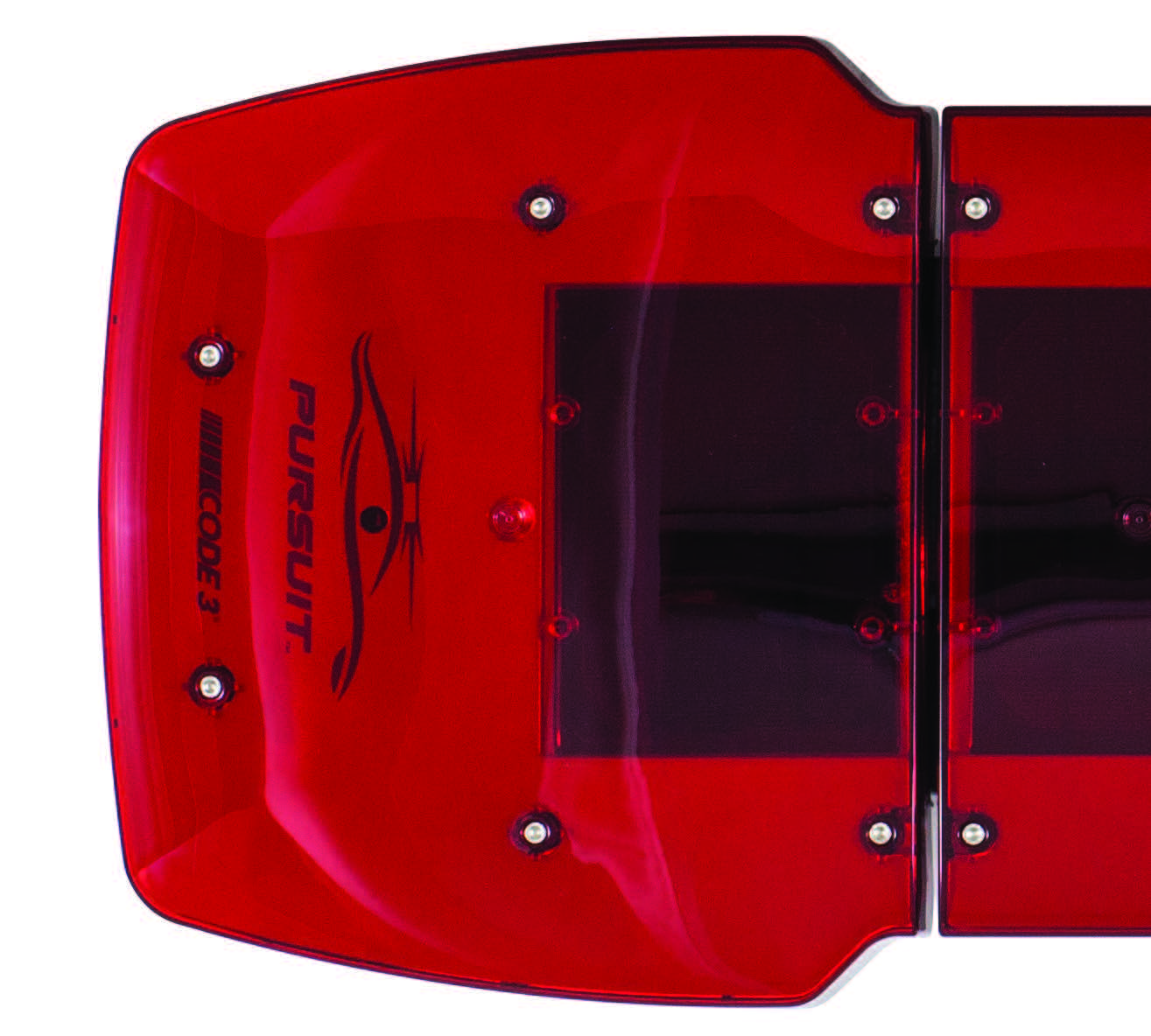

• Integrated lens sealing system

• ECE R10, CISPR 25, RCM, SAE J845 Environmental, SAE J575 Vibration, IP66

• Single colour upper light heads in red, blue or amber

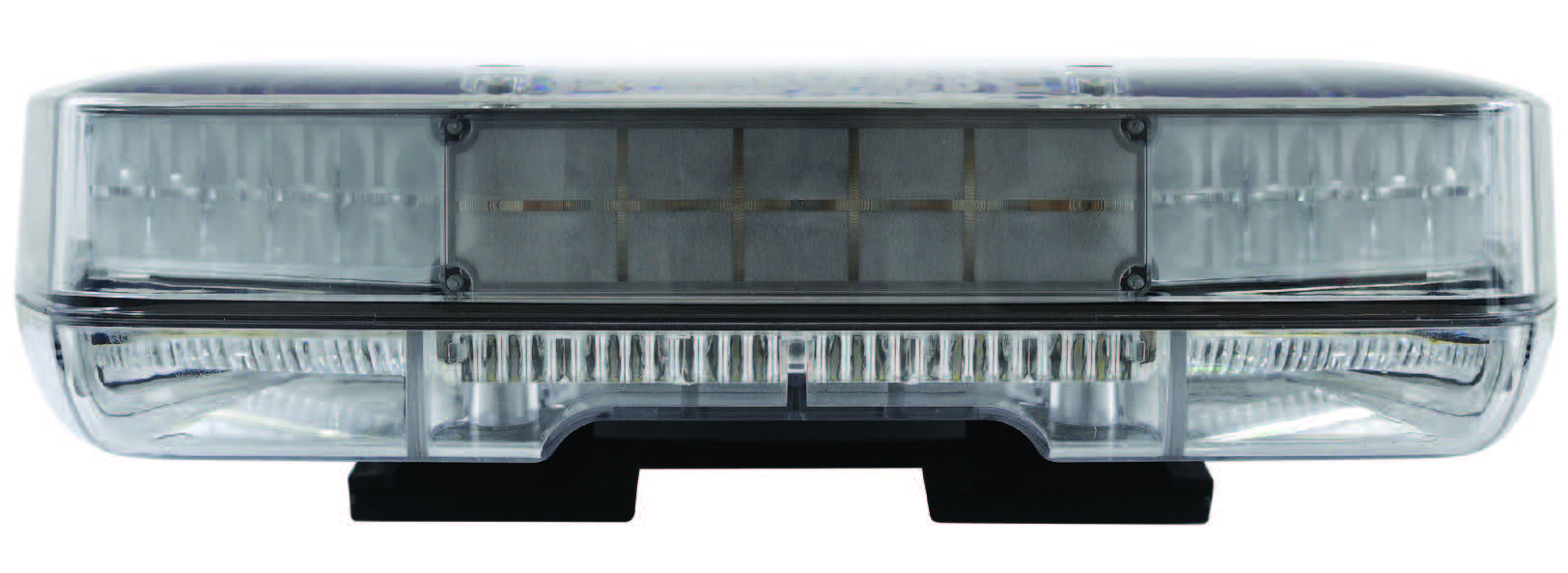

• Internal illuminated sign module (protected from weathering)
• Powerful lower level white scene lights

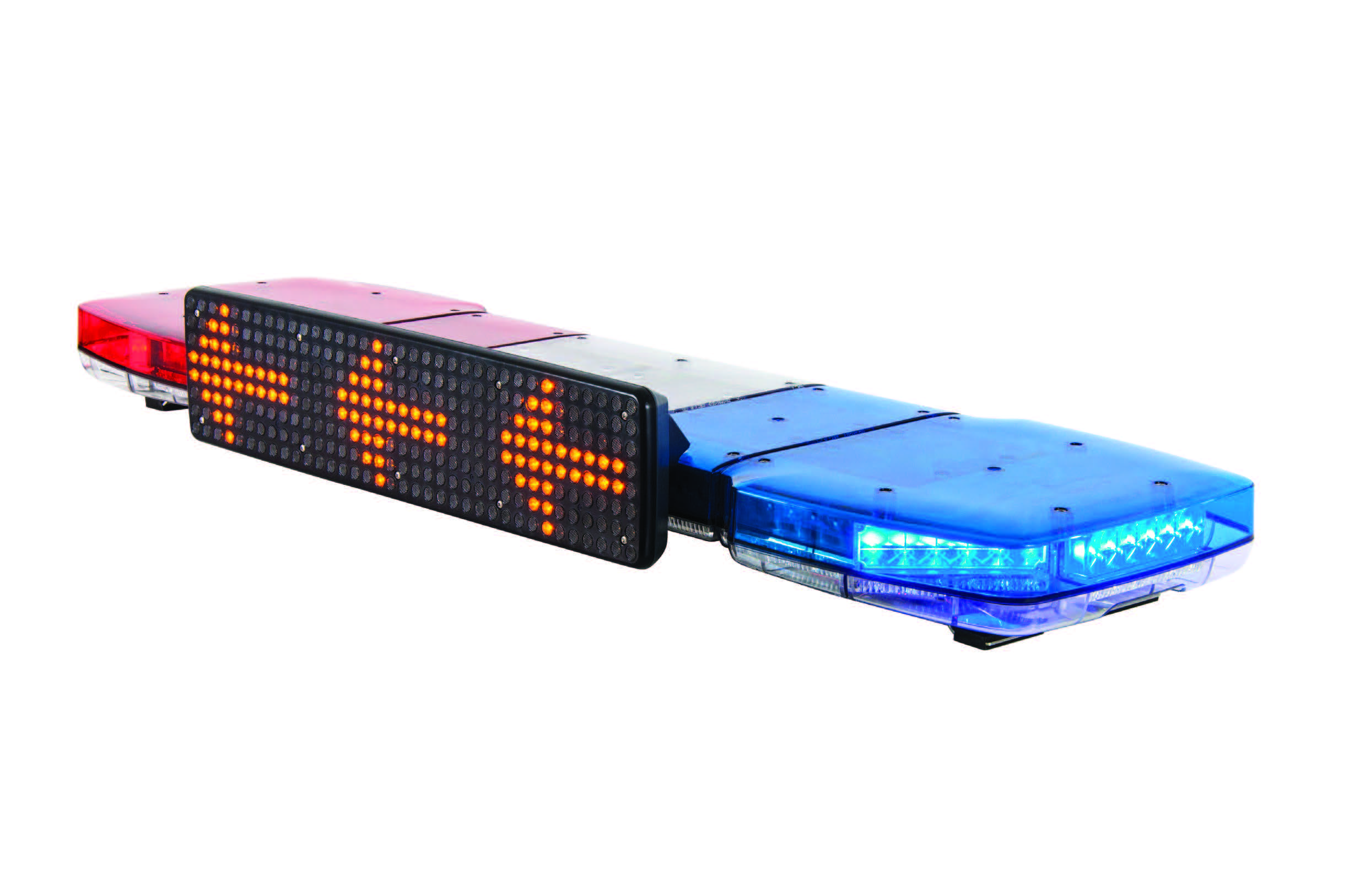

• Lower level integrated traffic advisor

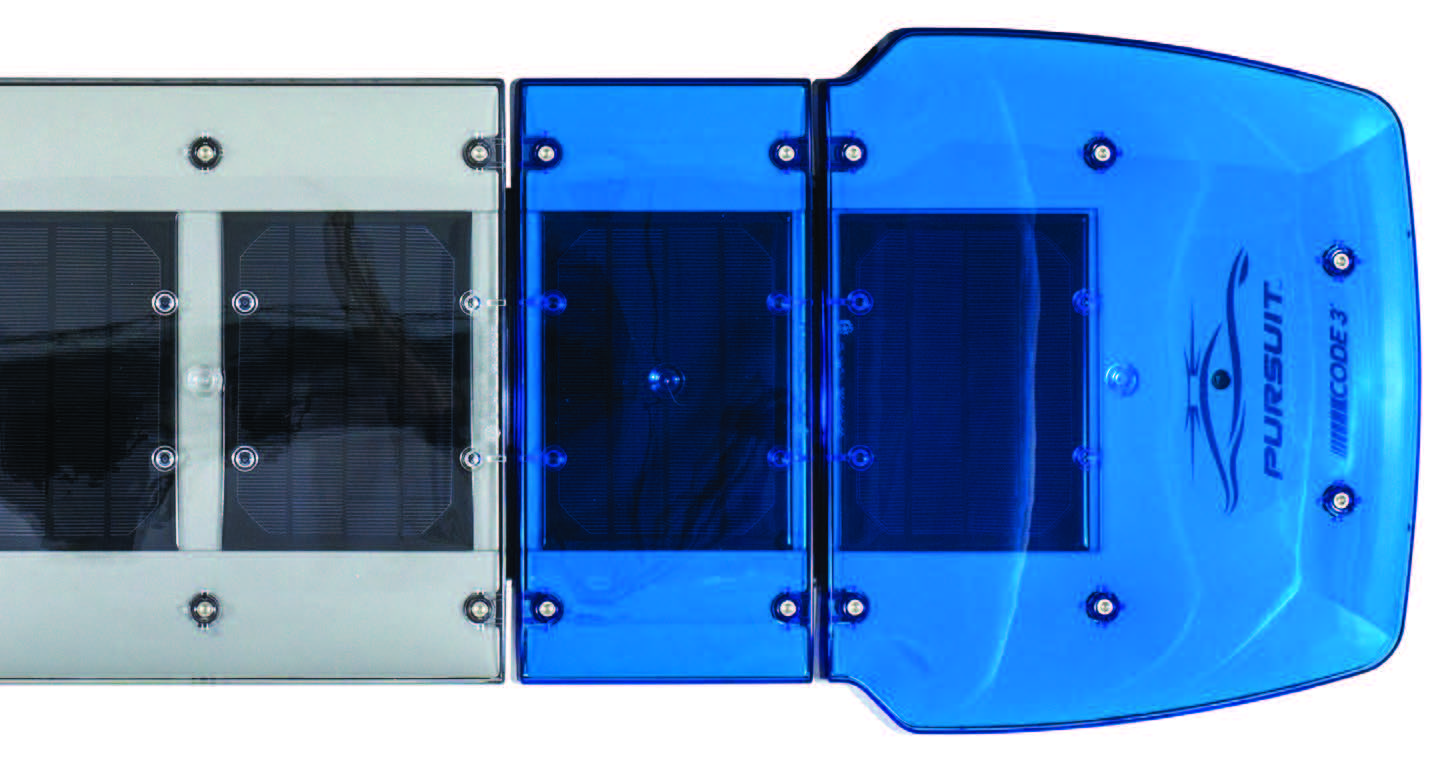

• Integrated solar panels for vehicle battery maintenance
• Coloured upper lens options that are independent of the
lower scene lighting and traffic advisor
• Lengths: 750mm (30″) to 1800mm (70″) in 150mm (6″) increments

Specifications

Module Type	26FP + Unlimited Configurations
Approval	SAE Class I, California Title 13, IP66, CISPR25
Height	Various
Length / Width	Various
Depth	Various
Warranty	5 YEAR
Voltage	12-24 V
