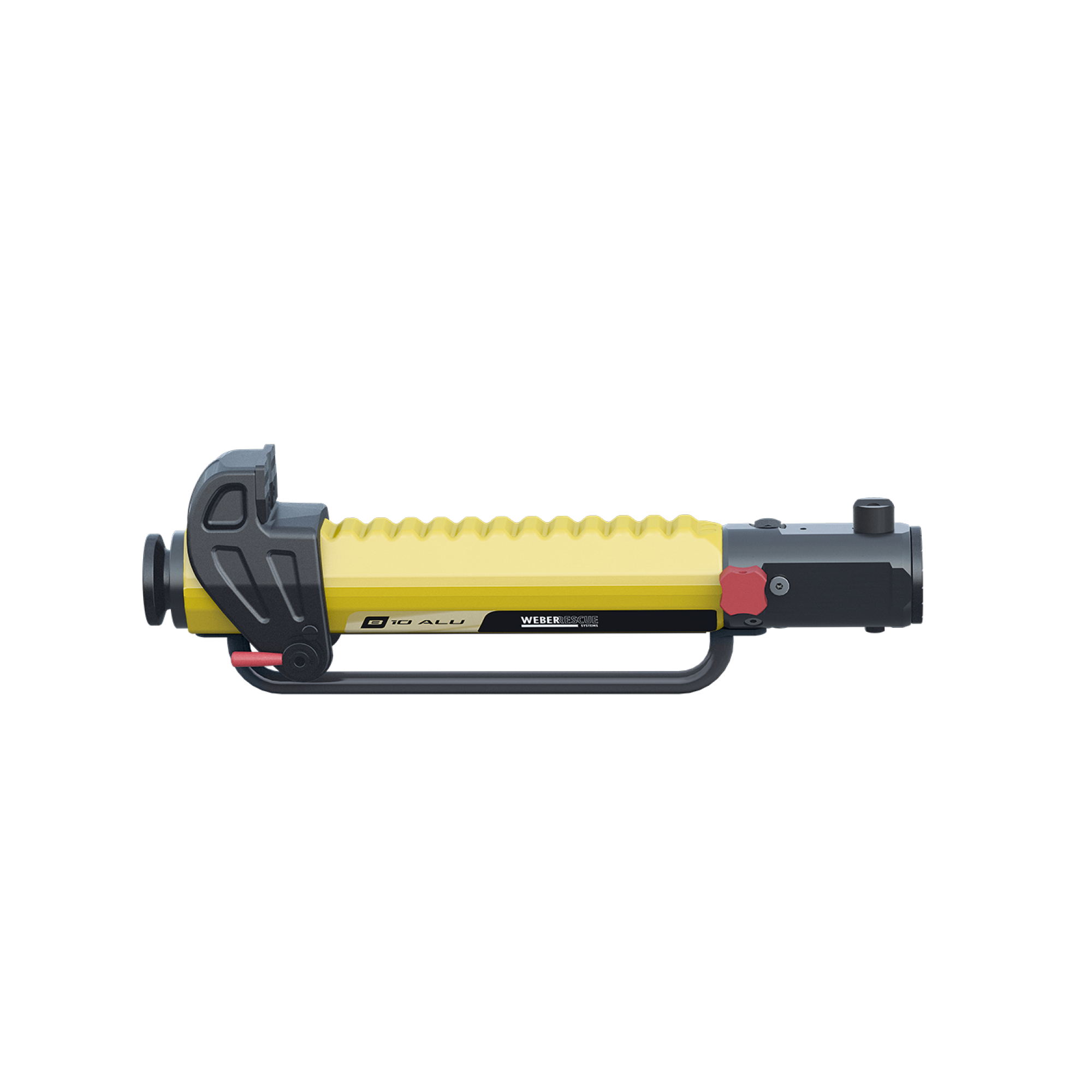

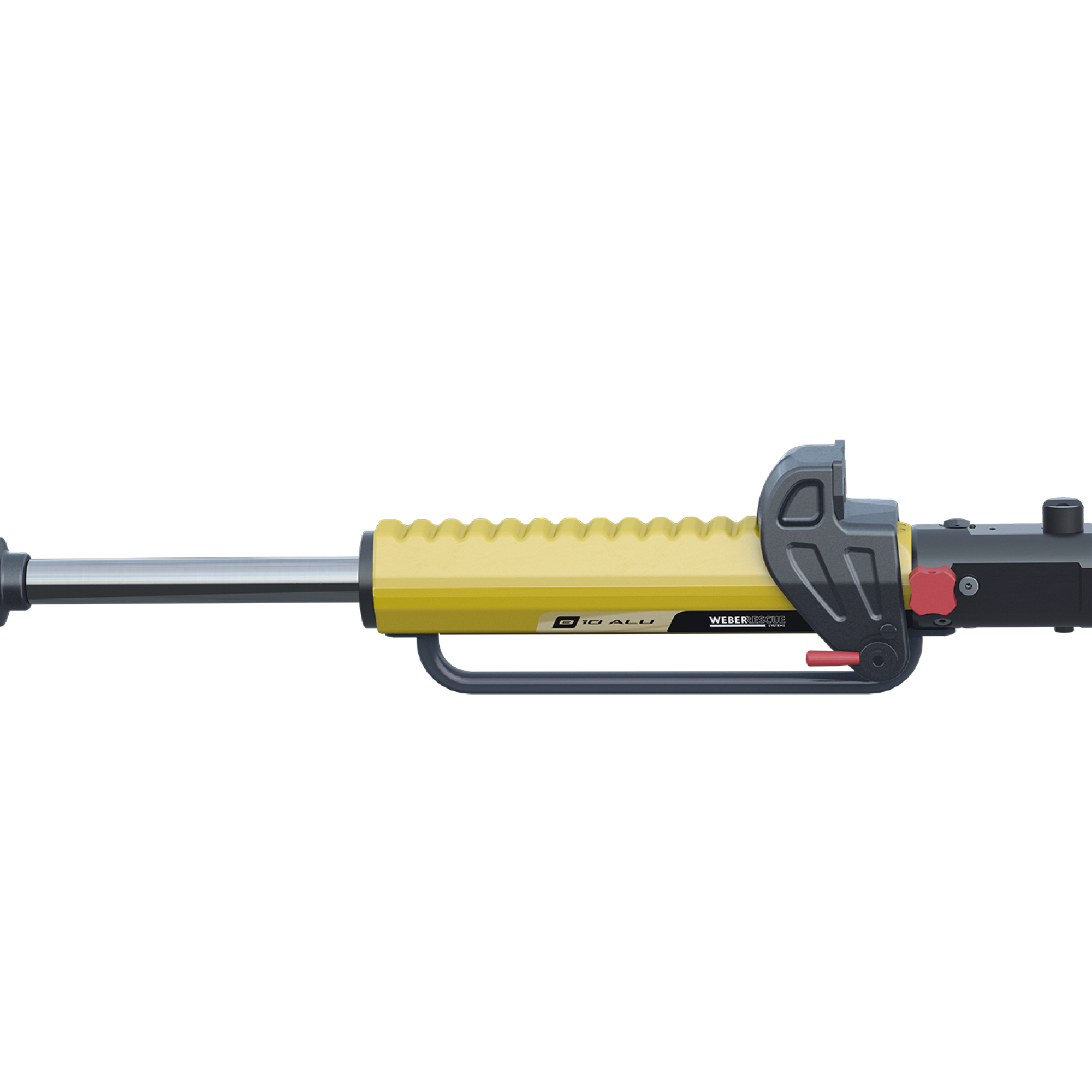

Weber Lifting Tool B 10 ALU
The lifting tool B 10 Alu is…
… the new standard for fast, safe and precise lifting in the field.
- The lifting tool B 10 ALU is the lightest and most precise hydraulic lifting tool – with 40 % less weight and at the same time more lifting force.

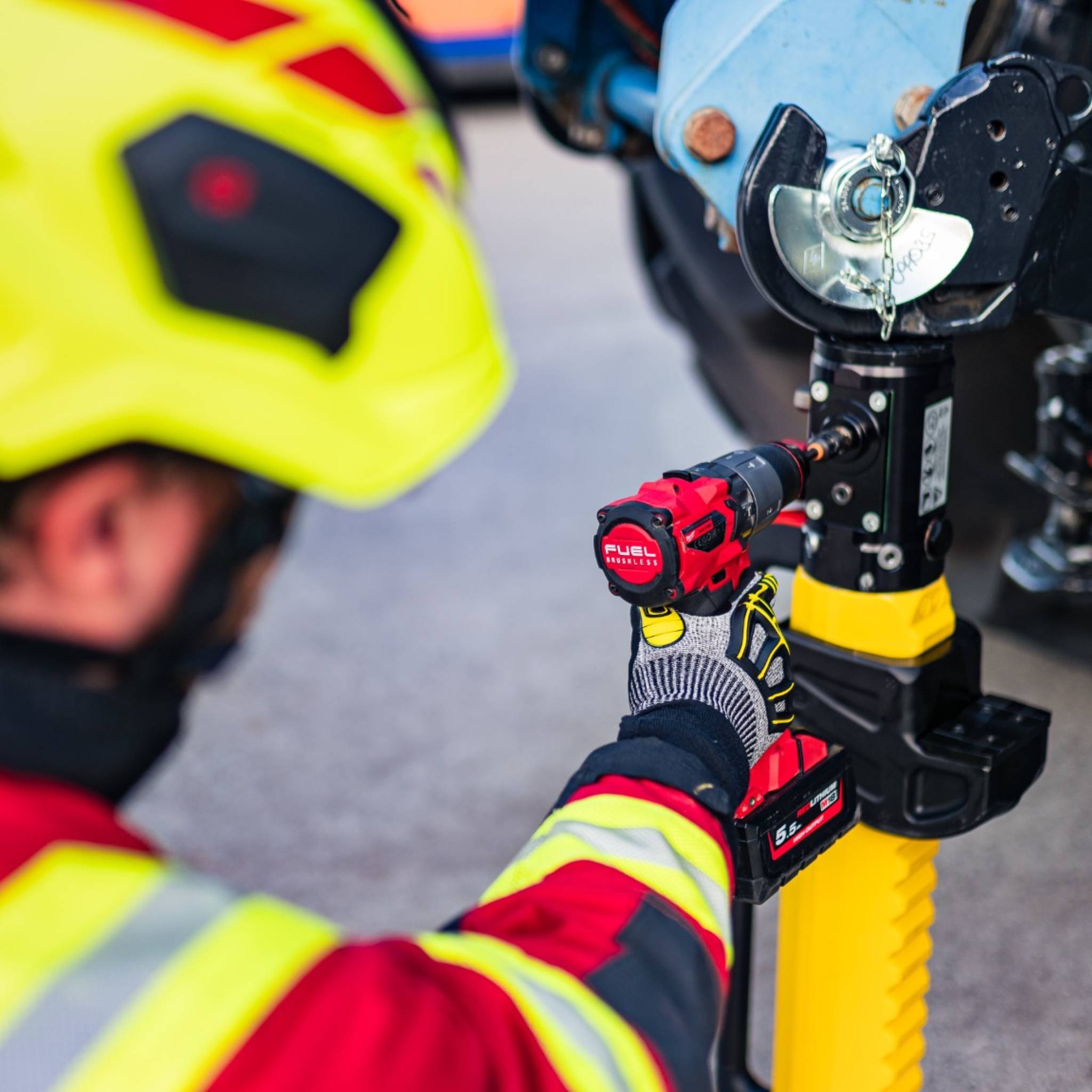

- Thanks to its sensitive control via a battery-powered screwdriver, it lifts loads of up to 105 kN in a controlled and energy-saving manner at the touch of a button.
- The 14-position locking mechanism provides maximum flexibility in use.
- Intuitive controls ensure optimum ergonomics, while the compact design significantly improves handling.

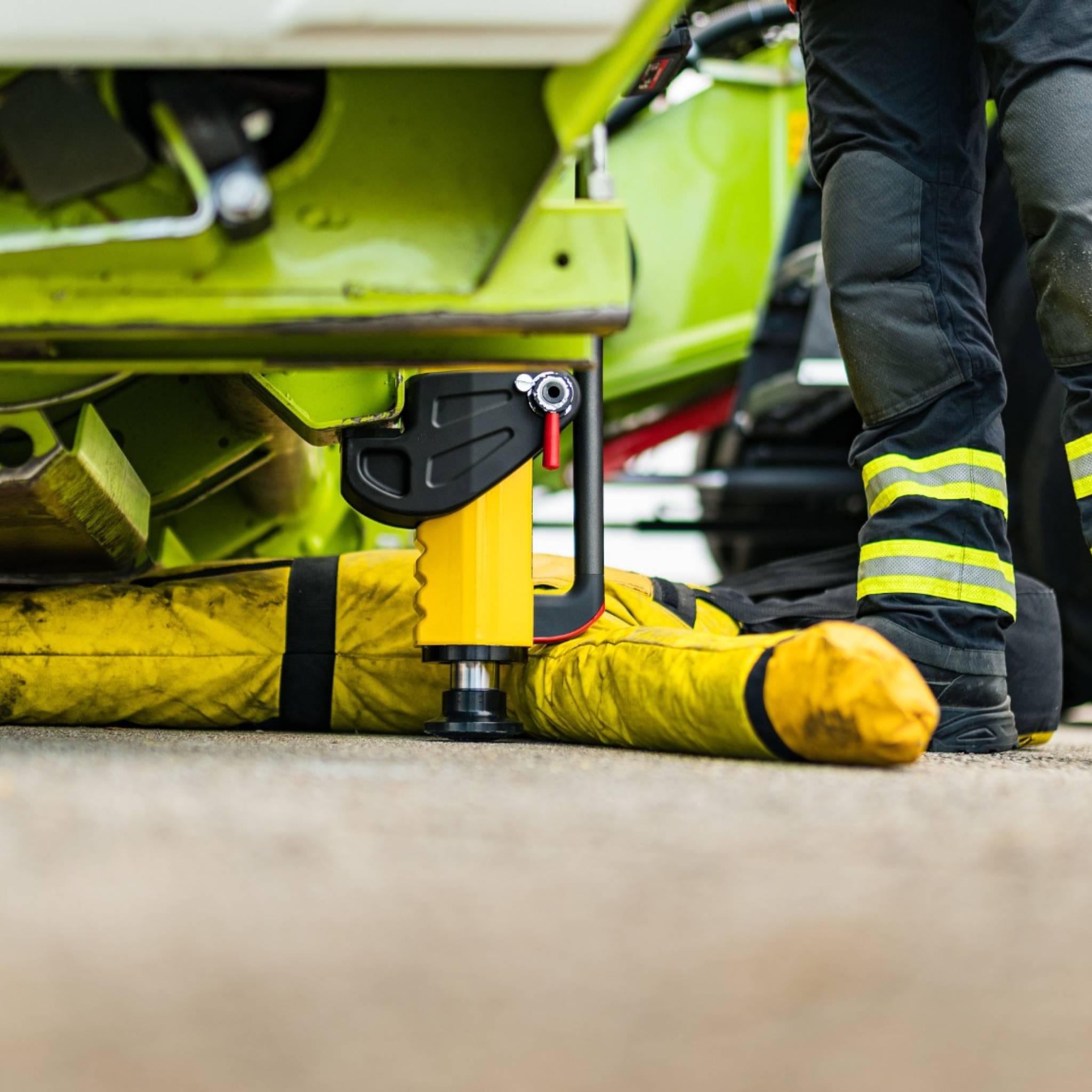

- Loads such as trams, debris or lorries can be lifted and moved reliably. Without the need for complex lifting bag systems.
| Lift height | 350 mm |
| Lifting capacity | 105 kN |
| Weight | 22,9 kg |
| Dimensions [H x W x D] | 735 x 156 x 242 mm |
| Installation height of the claw | 84–490 mm (14 positions, 29 mm each) |
| Installation height of the head plate | 735 mm |
| Chuck for cordless power tool | Hexagon 12 mm (SW12) |
| Required torque for cordless power tool | min. 50 Nm (e.g., Milwaukee M18 FPD3) |
| Extension time | Approximately 45 seconds (at 2100 rpm) |
| Part no. | 1107314 |
Spherical Base
| Part no. | 4833791 |
Base Bearing Plate
| Part no. | 1106472 |
Battery Hammer Drill
| Part no. | 1101786 |
