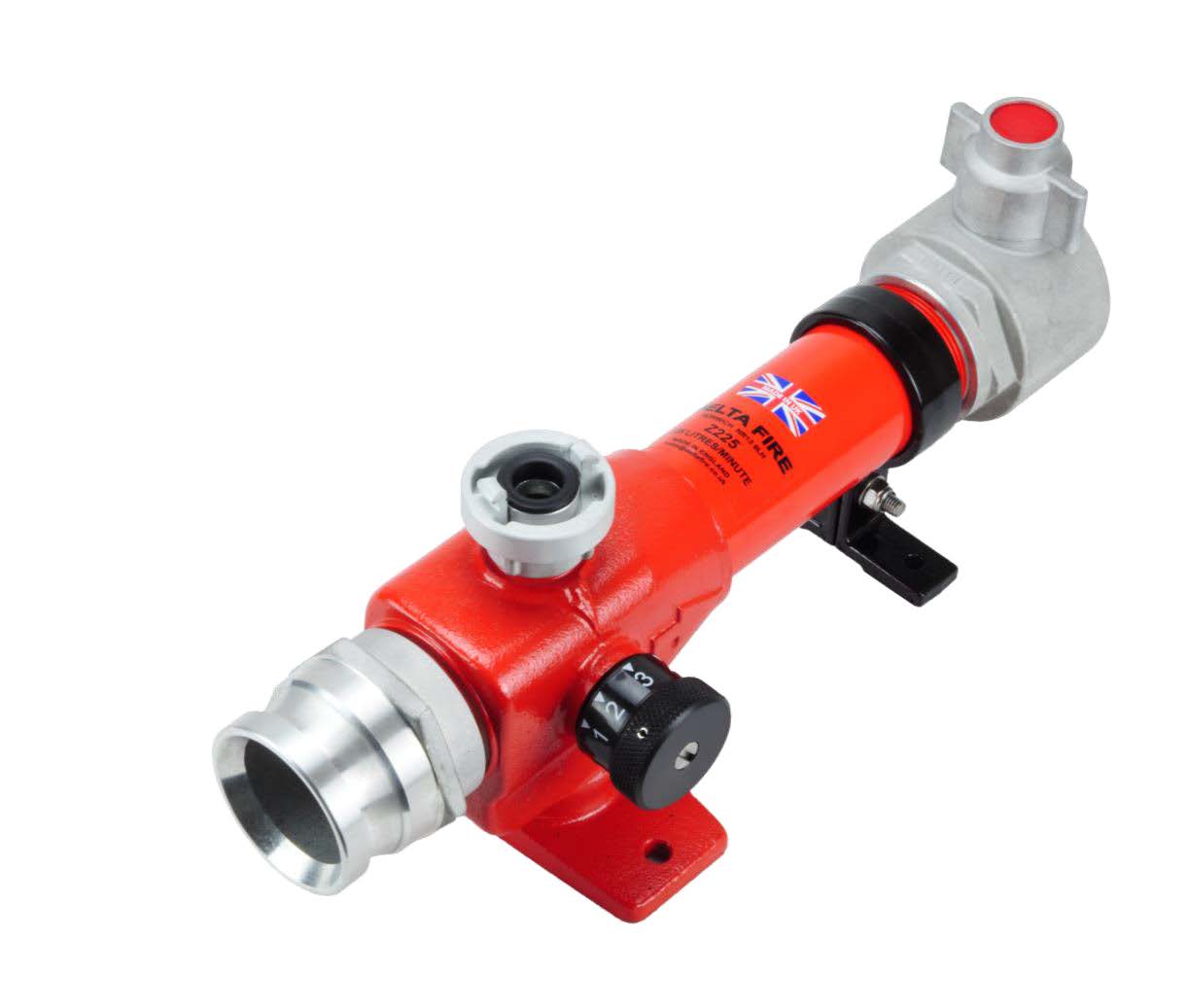

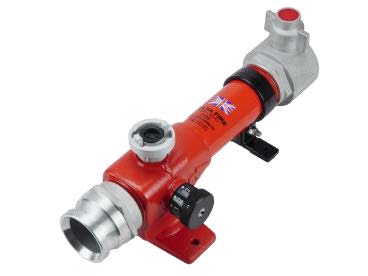

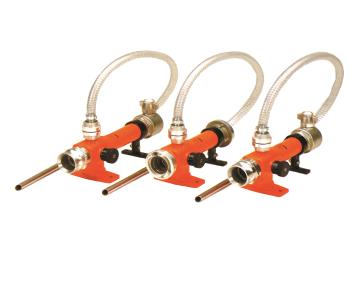

The Delta Z-Series of Variable Inline Foam Inductors provide a simple, cost effective means of introducing foam concentrates into the water stream. Fully variable and calibrated to pick up the foam concentrate between 1% & 6% the Z-Series range is manufactured in corrosion resistant materials and designed for use in conjunction with Delta Low and Medium Expansion Foam Branchpipes or equivalent types. Very simple to use and fully portable the Z-Series are suited to a wide range of Industrial & Marine sectors.

The Standard Z-Series range is manufactured with an epoxy polyester coated Alluminium or LG4 Gunmetal body for excellent corrosion resistance and boasts a stainless steel nozzle and filter. A fully Marinised version is also available with all stainless steel and LG4 Gunmetal componentry for use in extreme environments where harsh, saline atmospheres exist.

Supplied as standard with a quick release flexible foam pick-up tube and stainless steel drum piercer the Z-Series is fitted with BSP threaded inlet and outlet for flexibility of use with any type of International inlet adaptor.

Designed and Manufactured by Delta Fire in the UK the Z-Series Foam Inductor range is built under an ISO9001 Quality Management Standard from top quality materials and rigorously tested prior to dispatch.

Colour options in International Orange, High-Viz Yellow or Natural Gunmetal Finish.

 Fire & Rescue Services
 Marine
 Petrochemicals
 Fuel Storage Sites
 Oil & Gas
 Mining
 Chemical Facilities
 Major Industrials
 Aviation
 Nuclear

 Manufactured in the UK
 ISO9001 Quality Controlled
 Lloyds Certified
 Simple to Use
 Fully Portable
 Various Flow Options
 Variable Foam Induction
 Fully Marinised Options
 Choice of Colour Options
 All International Inlets

The Delta Z-Series range of Variable Foam Inductors are the culmination of extensive design and development work
over many years resulting in a superior, high performance product suited to a wide spectrum of applications around
the world.

Designed as a fully portable, easy to use, low cost
means of inducting foam concentrate into the
water stream the Z-Series can be used in
conjunction with any foam discharge device
including Branchpipes, Hi-Ex Generators and Fire
Monitors.

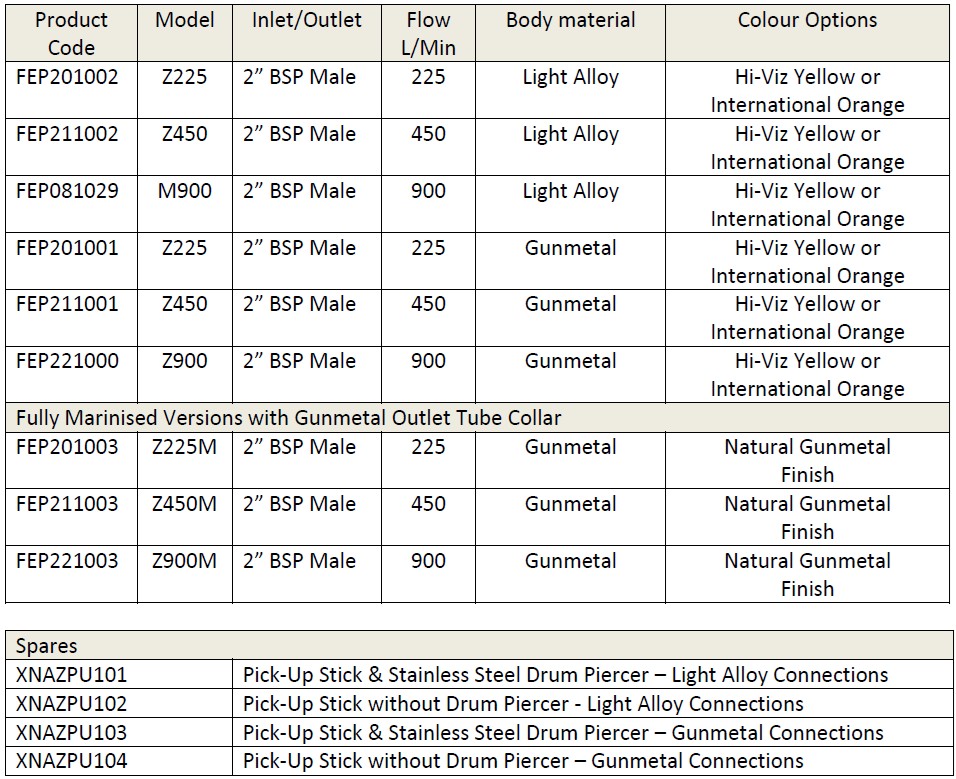

Delta’s Z-Series Variable Inductors are flow
engineered to provide three flow options – 225,
450 or 900 litres per minute to cater for all types
of fire and spill risks.
Fixed, bespoke flow options are also available for
integration into fixed foam suppression systems.

The Z-Series are manufactured with a choice of
either Light Alloy or LG4 Gunmetal bodies to suit
the environment of use. Both options have
stainless steel nozzles and filters and a fully

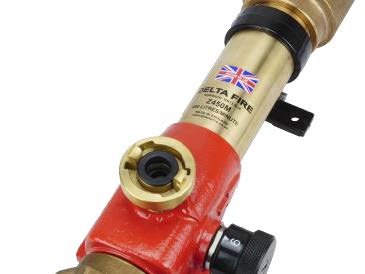

Marinised option is available for use in harsh
saline atmospheres. A wide choice of light alloy
or gunmetal International adaptors are available
for ease of connection to existing equipment.

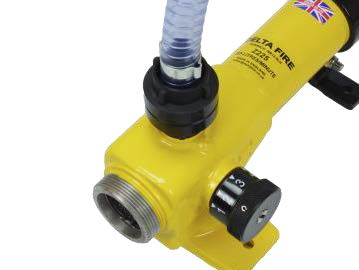

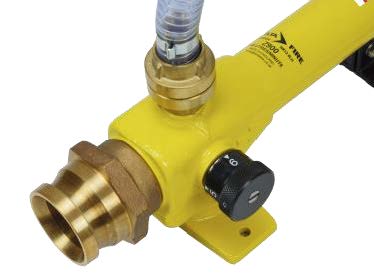

Z-Series Inductors are designed to pick up foam
concentrate at either 1%, 3% or 6%, easily selected
via a twist operated dial mounted on the side of

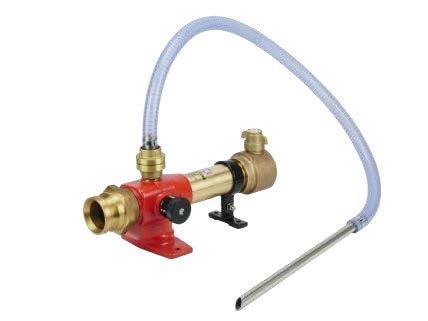

the body. A stainless steel drum piercer and quick
release pick-up tube is supplied as standard with
all models.

The Delta Z-Series of Foam Inductors covers all possible applications for fast, effective induction of foam
concentrate into the water-stream. With a choice of epoxy powder coated models in International Orange or
High-Viz Yellow or Natural Finish fully Marinised Gunmetal models, the Z-Series can be fitted with a wide range
of International inlet adaptors for compatibility to existing hoselines.
