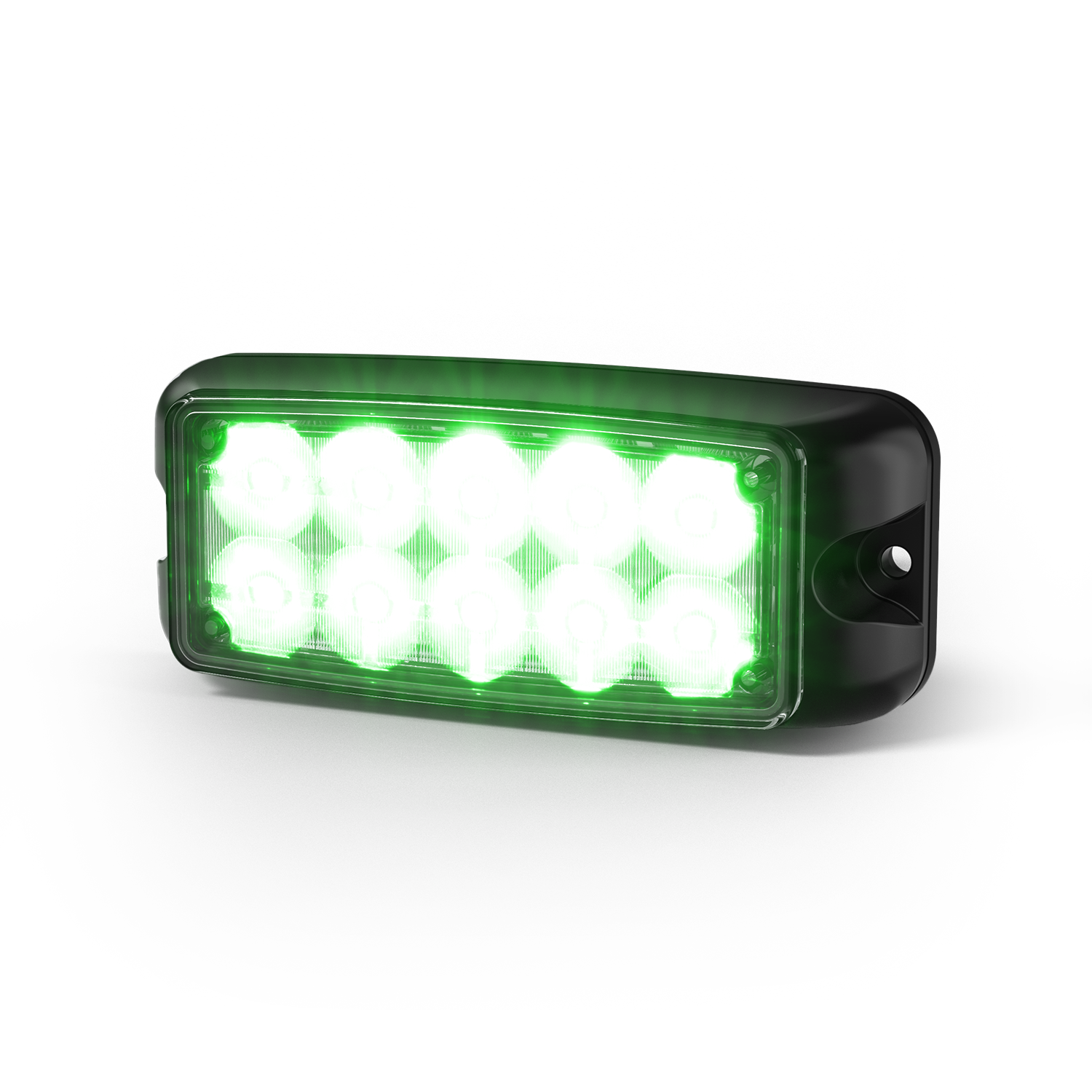

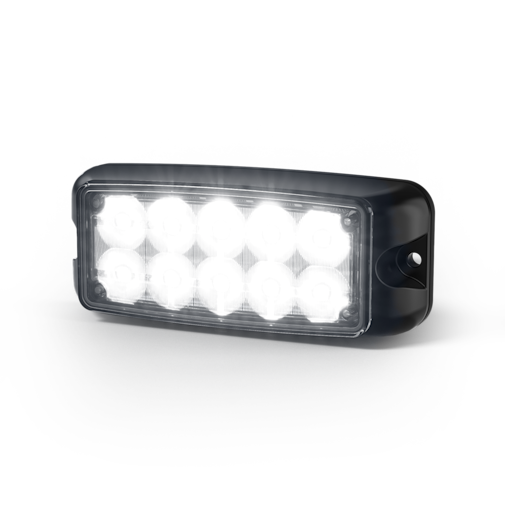

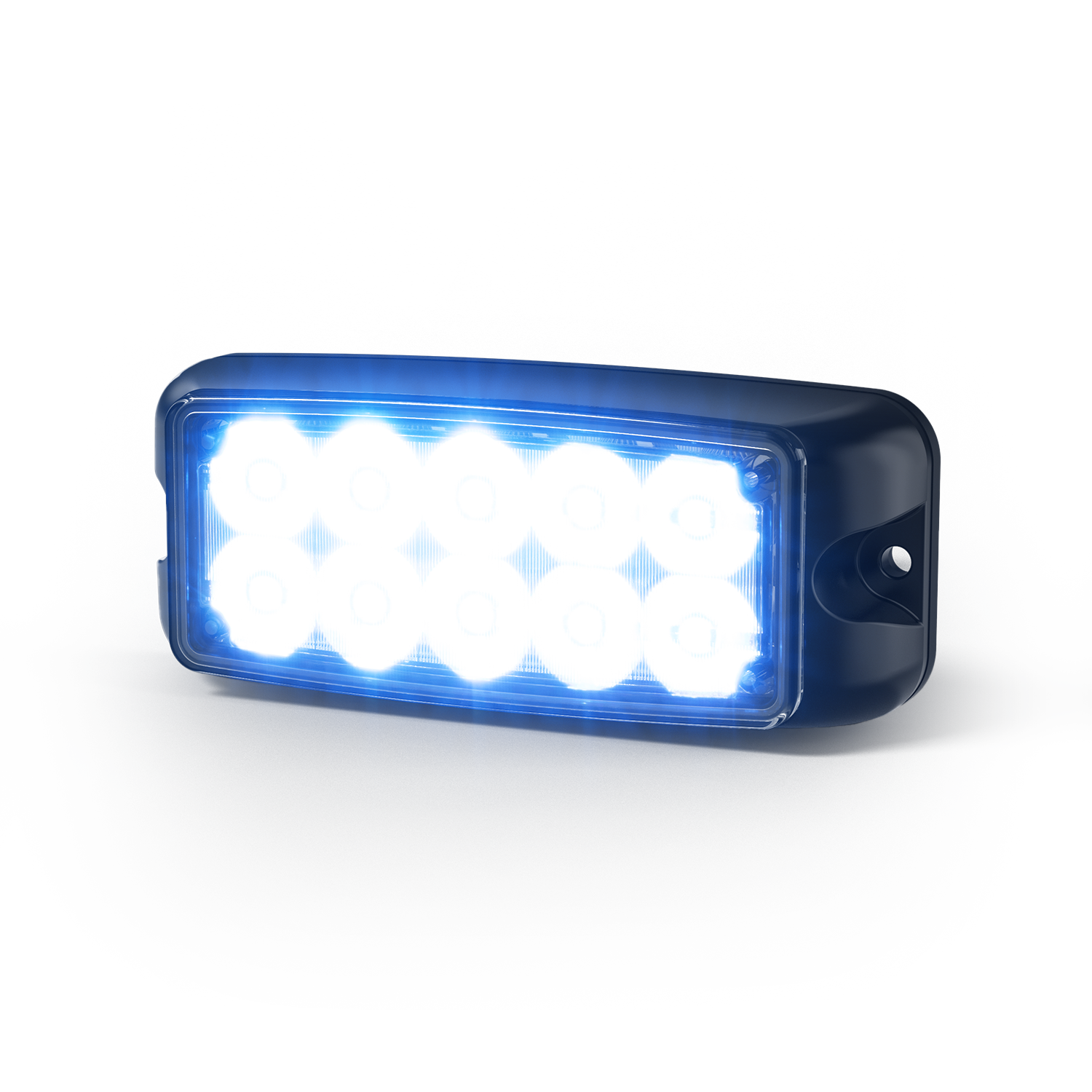

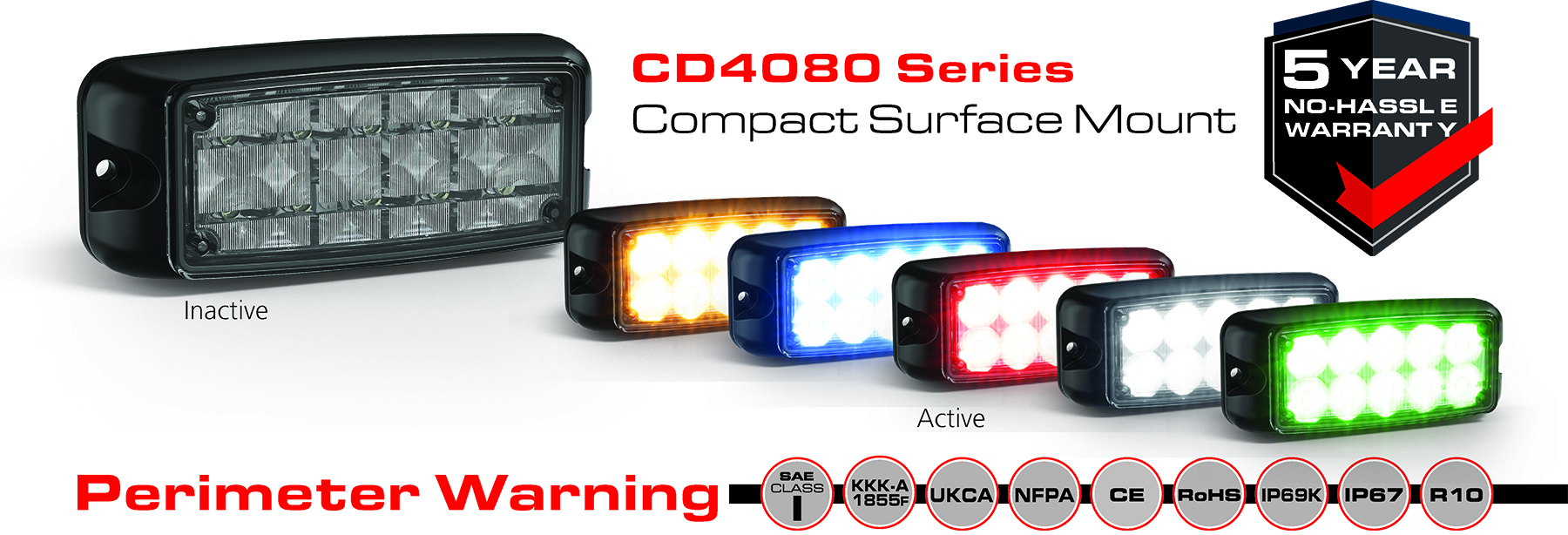

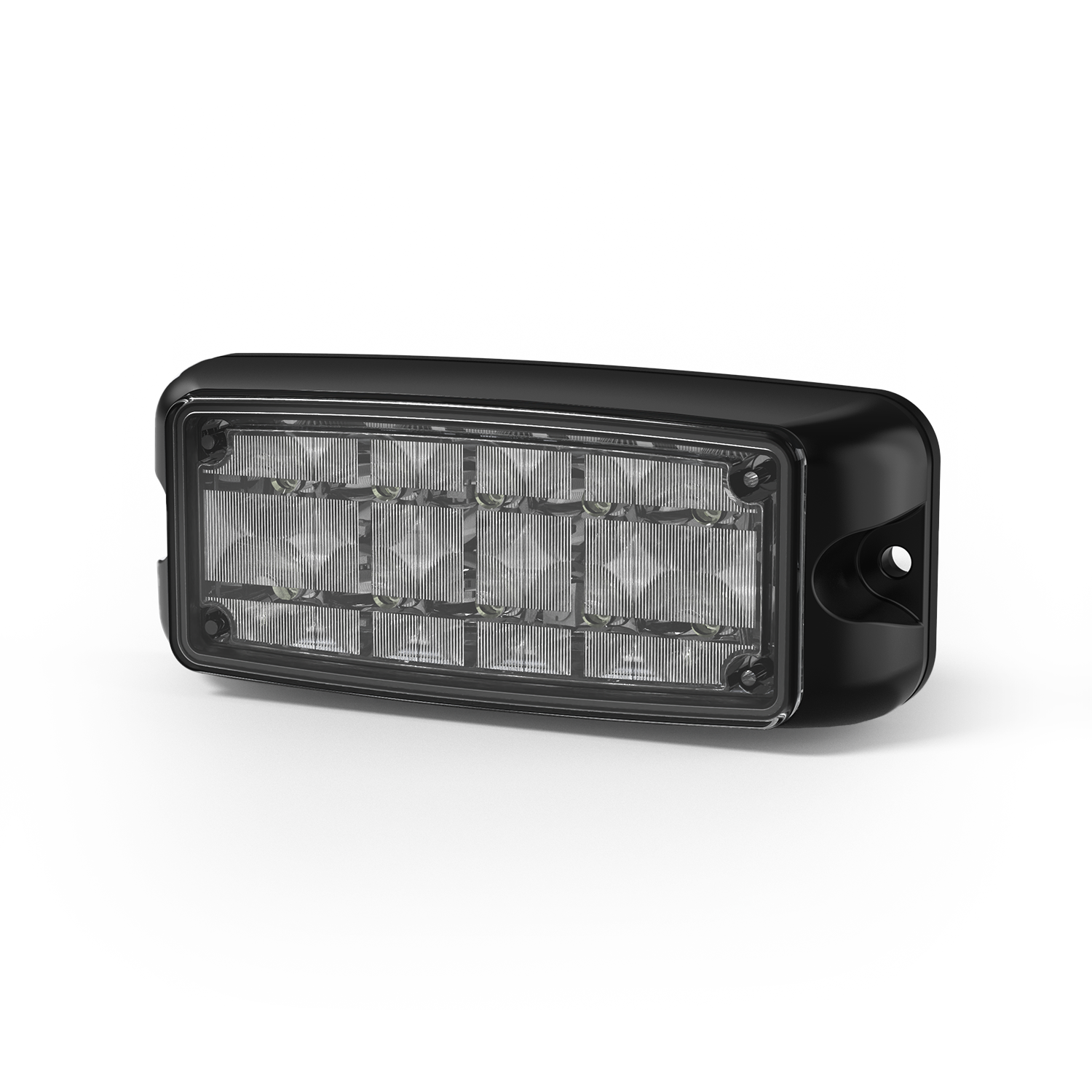

Code 3 CD4080 LED Surface Mount – Multi- and Single Colour

Code 3’s CD4080 Series provides powerful exterior and perimeter warning for ambulance, fire and police emergency vehicles. Engineered for maximum light output with an SAE Class I rating, these compact and powerful lights are among the brightest perimeter lights in the industry.

Matrix® compatibility allows for advanced sync capabilities that enhance first responder safety and calm the scene. They feature 20 single-colour and 55 dual-colour flash patterns, available in amber, blue, green, red and white LED colour combinations with waterproof aluminium black housing.

Engineered for maximum light output with an SAE Class I rating, these compact and powerful lights are among the brightest perimeter lights in the industry. Matrix® compatibility allows for advanced sync capabilities that enhance first responder safety and calm the scene.

Brighter than larger perimeter lights
• Black aluminium housing
• Polycarbonate lens
• Matrix® compatible
• C3DNA compatible
• Sync up to 8 units

20 single-colour and 55 dual-colour flash patterns, available in amber, blue, green, red and white LED colour combinations with waterproof aluminium black housing.

Colour	Amber
Bezel	Black
Mount	Surface
Flash Pattern	20
Approval	CLASS I (SAE J595), CA T13, CE, UKCA, IP67, IP69K, R10, KKK-A 1822F, NFPA, RoHS
Height	50
Length / Width	123
Depth	29
Warranty	5 YEAR
Voltage	12-24 V
Amps	1.77
